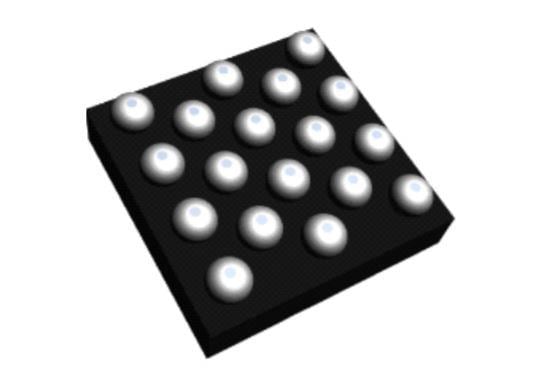

Azoteq IQS7211A101CSR 터치 센서 최대 32채널 트랙패드

Width: 1.62 mm

Height: 0.5 mm

Length: 1.62 mm

Dimensions: 3 mm x 3 mm x 0.5 mm

Sensor Type: Controller

Interface Type: I2C

Mounting Style: PCB Mount

Termination Style: SMD/SMT

Number of Channels: 1 Channel

Supply Voltage - Max: 3.5 V

Supply Voltage - Min: 1.71 V

Operating Supply Voltage: 1.71 V to 3.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
