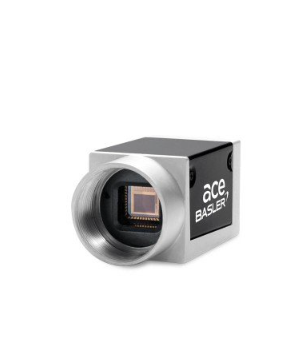

Basler acA2000-50gm - CMV2000 Area Scan Camera (2048 x 1088 px; Ams CMV2000-2E5M1BP; Mono)

Resolution (H x V Pixels): 2048 x 1088

Resolution: 2 MP

Sensor Type: Ams CMV2000-2E5M1BP / Progressive scan CMOS / Global shutter

Sensor Format: 2/3 inch

Effective Sensor Diagonal: 12.75 mm

Pixel Size (H x V): 5.5 x 5.5 μm

Frame Rate (at Default Settings): 50 fps

Mono / Color: Mono

Image Data Interface: Fast Ethernet (100 Mbit/s) Gigabit Ethernet (1000 Mbit/s)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈3.0 W when using Power over Ethernet / ≈2.5 W @ 12 VDC when supplied via I/O connector

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output linez

Lens Mount: C-mount

Size (L x W x H): 42.0 x 29 x 29 mm (without lens mount or connectors) / 60.3 x 29 x 29 mm (with lens mount and connectors)

Weight: <90 g

Conformity: CE (includes RoHS), EAC, UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH, KC

Software: Basler pylon Camera Software Suite (version 6.0 or higher) Available for Windows, Linux x86, Linux ARM, macOS, and Android
