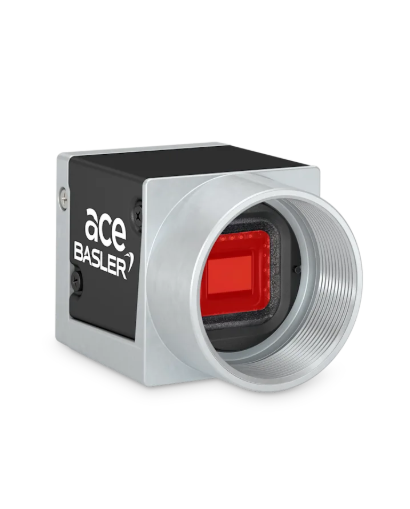

Basler acA2500-14uc Area Scan Camera (2590 x 1942 pixel; onsemi MT9P031)

Resolution (H x V Pixels): 2590 x 1942

Resolution: 5 MP

Sensor Type: onsemi MT9P031 / Progressive scan CMOS / Rolling shutter

Sensor Format: 1/2.5 inch

Effective Sensor Diagonal: 7.2 mm

Pixel Size (H x V): 2.2 x 2.2 µm

Frame Rate (at Default Settings): 14 fps

Mono / Color: Color

Image Data Interface: USB 3.0, nominal max / 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈2.2 W (typical and max.) @ 5 VDC

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line / 2 general purpose I/O (GPIO) lines

Lens Mount: C-mount / CS-mount

Size (L x W x H): 29.3 x 29 x 29 mm (without lens mount or connectors) / 48.2 x 29 x 29 mm (with lens mount and connectors)

Weight: <80 g

The Basler acA2500-14uc USB 3.0 camera with the onsemi MT9P031 CMOS sensor delivers 14 frames per second at 5 MP resolution.
