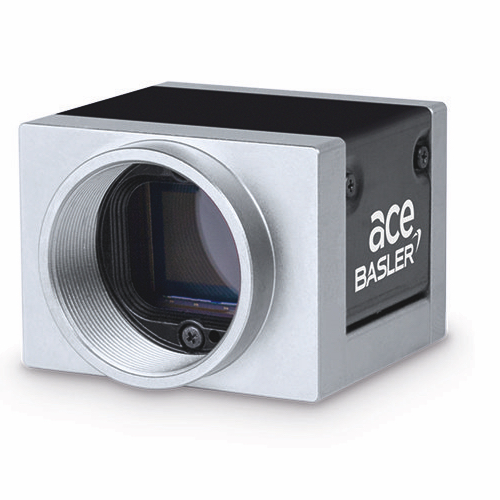

Basler acA4096-30um Area Scan Camera (4112 x 2176 pixel; 4096 x 2168 pixel; Sony IMX267LLR)

Resolution (H x V Pixels): 4112 x 2176 (full resolution) 4096 x 2168 (default resolution)

Resolution: 8.9 MP

Sensor Type: Sony IMX267LLR / Progressive scan CMOS / Global shutter

Sensor Format: 1 inch

Effective Sensor Diagonal: 16.1 mm

Pixel Size (H x V): 3.45 x 3.45 µm

Frame Rate (at Default Settings): 32.3 fps

Mono / Color: Mono

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: 3.0 W (typical) @ 5 VDC

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line / 2 general purpose I/O (GPIO) lines

Lens Mount: C-mount

Size (L x W x H): 35.8 x 40 x 30 mm (without lens mount or connectors) 48.2 x 40 x 30 mm (with lens mount and connectors)

Weight: <140 g

The Basler acA4096-30um USB 3.0 camera with the Sony IMX267 CMOS sensor delivers 32 frames per second at 8.9 MP Resolution.
