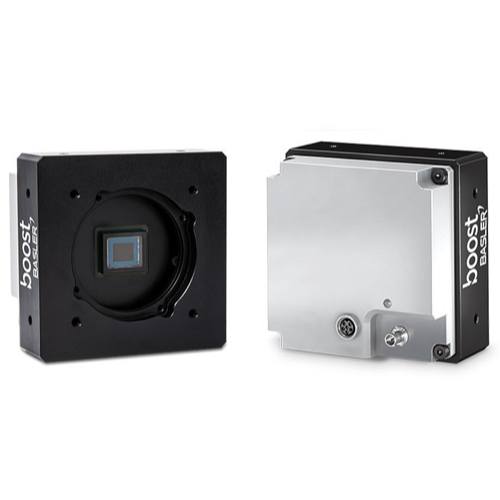

Basler boA4112-68cm Area Scan Camera (4112 x 3008 pixel; 4096 x 3000pixel; Sony IMX253LLR-C)

Resolution (H x V Pixels): 4112 x 3008 (full resolution) 4096 x 3000 (default resolution)

Resolution: 12.3 MP

Sensor Type: Sony IMX253LLR-C / Progressive scan CMOS / Global shutter

Sensor Format: 1.1 inch

Effective Sensor Diagonal: 17.6 mm

Pixel Size (H x V): 3.45 x 3.45 µm

Frame Rate (at Default Settings): 65 fps / 69 fps (with sensor bit depth set to 8 bit)

Mono / Color: Mono

Image Data Interface: CoaXPress (2.5–12.5 Gbps)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: Power over CoaXPress (PoCXP): 24 VDC supplied via the camera

I/O Lines: 1 opto-coupled input line 2 general purpose I/O (GPIO) lines

Lens Mount: Universal camera front, suitable for the following lens mounts: C-mount, F-mount, M42x0.75-mount (FBD 16 mm), M42x1-mount (FBD 16 mm), M42x1-mount (FBD 45.56 mm))

Lens mounts are not included with the camera and must be ordered separately as accessories

Size (L x W x H): 45 x 80 x 80 mm

Weight: 480 g

The Basler boA4112-68cm CoaXPress camera with the Sony IMX253 CMOS sensor delivers 68 frames per second at 12 MP resolution.

The boost series is available with different lens mounts (C-mount and F-mount). These must be purchased separately for the camera.
