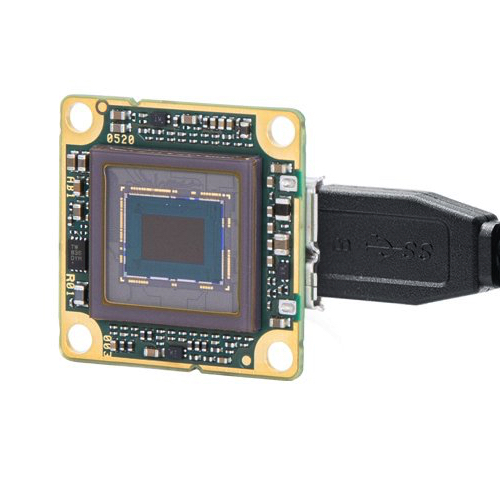

Basler daA1920-160uc (No-Mount) Area Scan Camera (1936 x 1216 px; 1920 x 1200px; Bare board)

Resolution (H x V Pixels): 1936 x 1216 (full resolution) / 1920 x 1200 (default resolution)

Resolution: 2.3 MP

Sensor Type: Sony IMX392LLR-C / Progressive scan CMOS / Global shutter

Sensor Format: 1/2.3 inch

Effective Sensor Diagonal: 7.9 mm

Pixel Size (H x V): 3.45 x 3.45 µm

Frame Rate (at Default Settings): 67 fps (default settings) / 164 fps (default setings, disabled Device Link Throughput Limit)

Mono / Color: Color

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Programmable via the camera API

Camera Power Requirements: ≈2.3 W (typical) @ 5 VDC

I/O Lines: 4 general purpose I/O (GPIO) lines

Lens Mount: Bare board

Size (L x W x H): 8 x 28.3 x 27 mm

Weight: <5 g

The Basler daA1920-160uc (No-Mount) USB 3.0 camera with the Sony IMX392 CMOS sensor delivers 160 frames per second at 2.3 MP resolution. This model has no mount.
