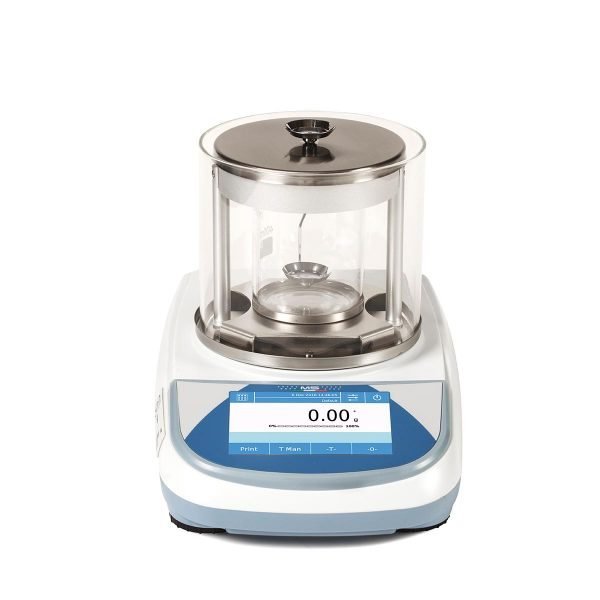

BEL Engineering M5-iDens Foundry Density Balance (3100g; 0.01g)

Capacity [Max]: 3100g

Resolution [d]: 0.01g

Calibration: Automatic internal

Pan size: Ø 80 mm

Repeatibility: 0.05 g

Linearity: ± 0.08g

Response time (sec.): ≤2

Verification: N/A

Minimum Load: 500 mg

Display: TOUCH-SCREEN 5''

Tare Range (Subtractive): 3100 g

Span Drift In +10…+30°C: ± 3 ppm/°C

Interface: RS232

Database Capacity: 3000

Working Temperature: 5–35°C (15–30°C for verified models)

Power Supply: 110–230Vac, 50/60Hz, output 24V 1A 13VA

Power Consumption (Max): 2 Watt

Calibrates With (Class): 2000 g (F1)

Balance Dimensions (W x L x H): 215 x 345 x 300 mm

Net Weight / Gross Weight, Approx.: 7 / 8.5 kg
