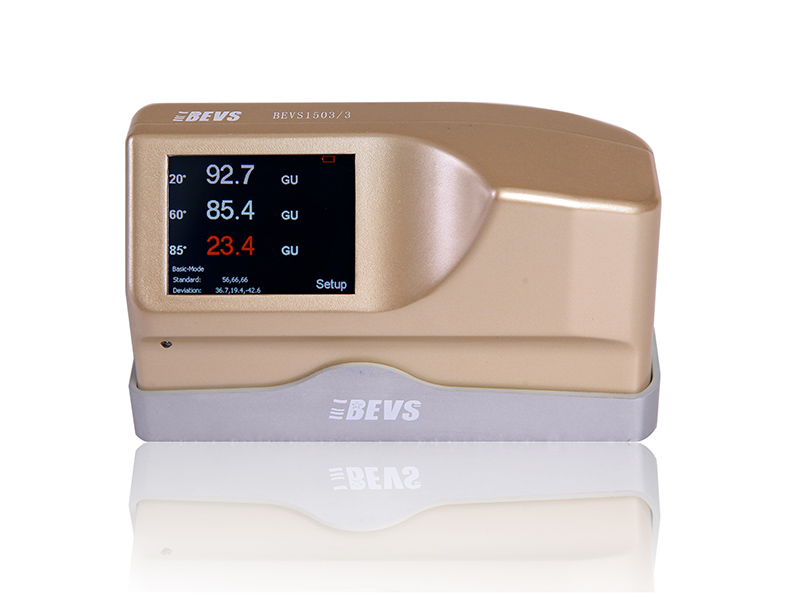

Bevs BEVS 1503/3 광택계 (85°, 0-2000GU)

Angle: 85°

Measurement range: 0-2000GU

Repeatability: ±0.2(0-199.9GU), ±0.2%(200-2000GU);

Reproducibility: ±0.5(0-199.9GU), ±0.5%(200-2000GU);

Precision: 1GU

Measuring area(mm): 5x38

Display resolution: 320 x 240

Control: Touch screen with one key measurement

Memory: Basic mode: 3000 batches

                 Statistics mode: 3000 batches

                 Continuous mode: 1000 batches

Data port: USB & blue tooth

Introduction:

This BEVS portable intelligent glossmeter has a wide range of applications from matt to high gloss measurements, with advanced touch screen technology and ideal for production and laboratory.

Samples can be measured separately at each angle or at 2 or 3 angles simultaneously and effectively processed using the powerful built-in software.

Features:

Automatic calibration integrated in protective holder.

Touch screen with one button measurement

Display reading, statistics and calibration procedure on colorful touch screen

One second to complete automatic calibration

Memory up to 16000 x 3 readings

Multi- languages menu available

Built-in battery with USB port

Transfer data to PC via USB cable, more extended functions

Blue tooth connection

Real-time to view measurement data via mobile phone

Standard:

ISO 2813, ASTM D523, DIN 67530

Order Information:

BEVS 1503   Intelligent Tri-Glossmeter ( 20°/60°/85°)

BEVS 1503/1 Intelligent Glossmeter (20°)

BEVS 1503/2 Intelligent Glossmeter (60°)

BEVS 1503/3 Intelligent Glossmeter (85°)
