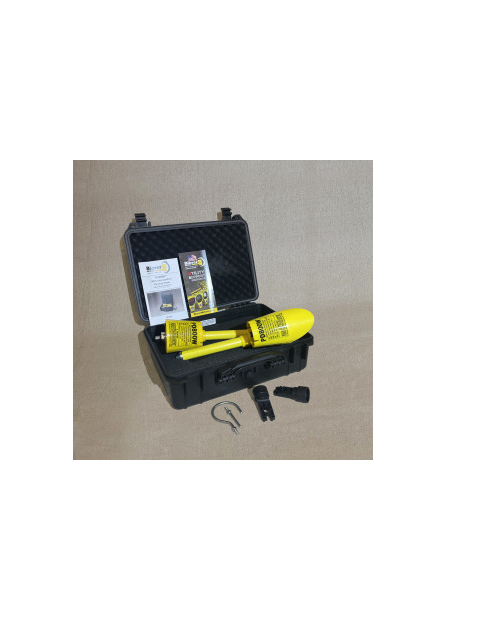

Bierer Meters PD800W Cordless Phasing Tester (2kV – 51kV, 120/208 – 765kV)

Functional Description: Voltage Detector/Wireless Phasing Meter

Minimum Operating Temperture: 0 degree Fahrenheit (-18 degrees Celsius)

Maximum Operating Temperture: 120 degrees Fahrenheit (49 degrees Celsius)

Max. Operating Range: 100 ft. (30.5 meters) w/interference, 300 ft. (91.4 meters) w/no

interference

AC specifications:

2kV – 51kV Phase-to-Ground nominal readings in the “OH” and “URD” Voltage switch positions.

120/208 – 765kV Phase-to-Ground in the “DEG” Phasing switch position.

Any phasing in the “DEG” position above 69kV is non-contact.

Physical Dimensions: 14.5 in. long (36.8 centimeters) X 4 in. wide (10.2 centimeters) X 7 in. high (17.8 centimeters)

Weight: 2.5 lbs. (.9 kilograms) Meter probe, 2 lbs. Reference probe
