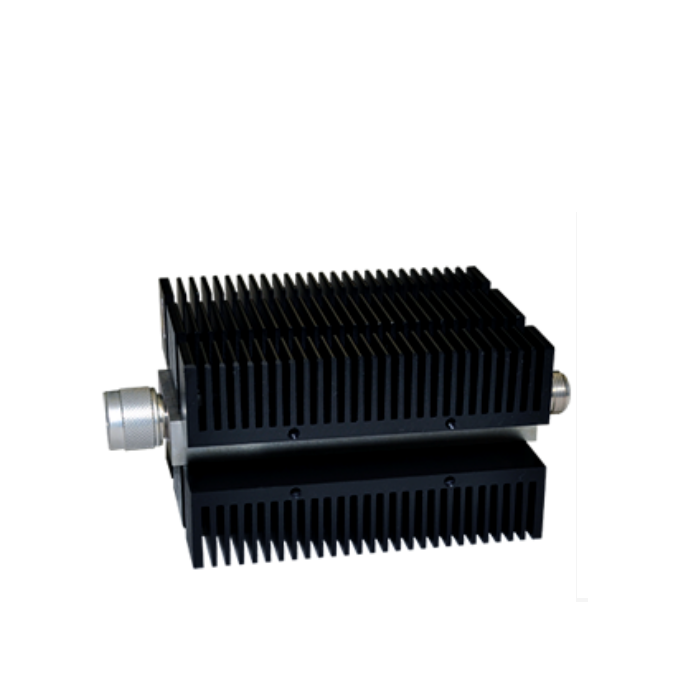

Bird 100-6A-MFN-03 RF 감쇠기 (100W, 6GHz, Male/Female, 03dB)

Power Rating: 100 W

Connector: N

VSWR and Frequency Range:

       1.20:1 from DC to 2 GHz

       1.35:1 from 2 to 4 GHz

       1.40:1 from 4 to 6 GHz

Coolant Method: Dry, Convection Cooled

Impedance: 50 Ohms

Temperature: -40 to 40 °C (-40 to 104 °F)

PIM: -110 dBc Min.

Humidity: 95% non-condensing

Standard Attenuation Values: 3, 6, 10, 20, 30dB

Dimensions: 6.4” x 2.7” x 3.8”/ 163 x 69 x 97 mm

Weight: 2.4 lbs./ 1.7 kg

Finish: Stainless Steel
