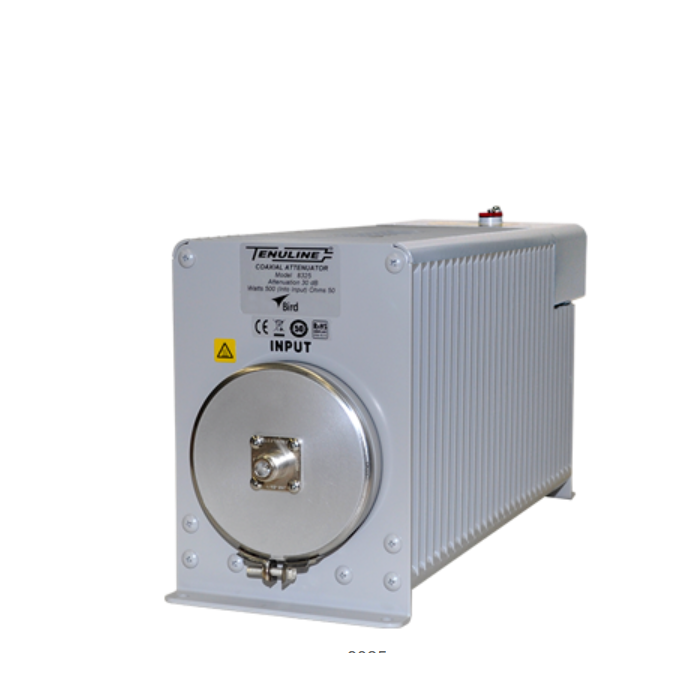

Bird 8325 RF 감쇠기 (500W)

Power Rating: 500 W continuous

VSWR and Frequency Range: Input 1.1 max. DC - 500 MHz

Product Type Oil-Cooled

Coolant: 0.9 gal. (3.4 liters)

Attenuation: 30

Accuracy: ±0.5 dB

Connector: N, (F)

Operating Temperature: -40 to +45°C (-40 to +113°F)

Operating Position: Horizontal only

Finish: Gray Powder Coat

Dimensions: 17-1/2" x 5-15/16" x 8-1/2" / 445 x 151 x 216 mm

Weight: 25 lbs. (11 kg)
