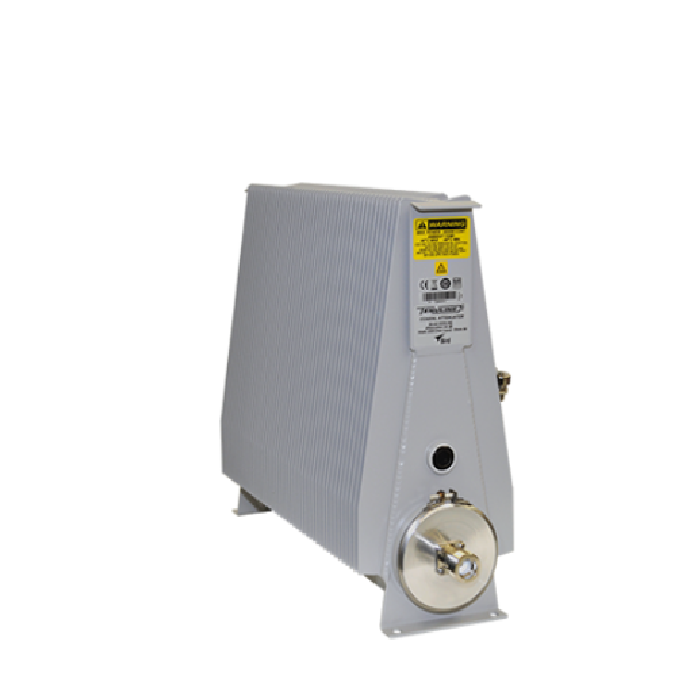

Bird 8329-300 Oil-Cooled RF Attenuator (2kW)

Power Rating: 2 kW continuous

VSWR and Frequency Range: DC ~ 500 MHz @ Input 1.1 max.

Product Type: Oil -Cooled

Coolant: 2.9 gal. (11 liters) Silicone Oil

Attenuation: 30

Accuracy: ±0.5 dB

Connector: LC (F) - Input, N (F) - Output

Operating Temperature: -40 ~ 45°C (-40 ~ 113°F)

Finish: Gray Powder Coat

Dimensions (L x W x H): 596 x 181 x 437 mm

Weight: 57 lbs. (26 kg)
