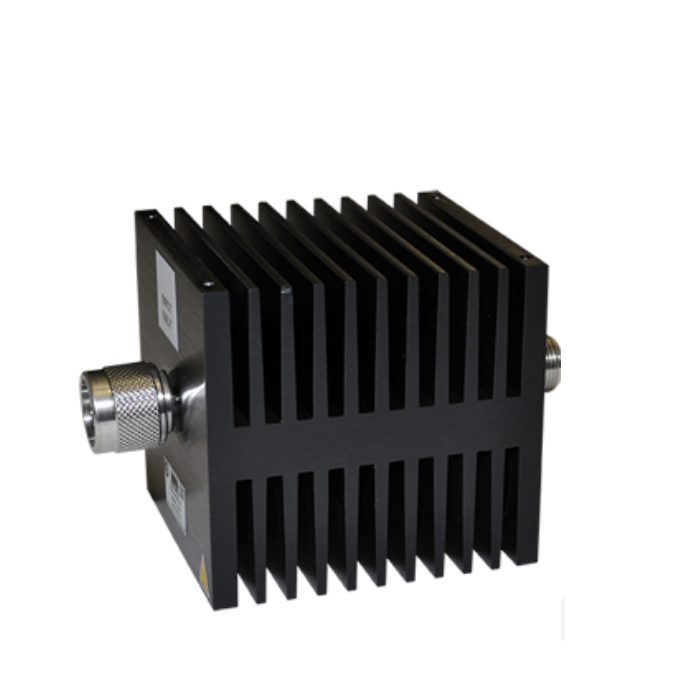

Bird 8353A040-50-18 RF 감쇠기 (50W)

Power Rating: 50W

Frequency Range: DC to 18 GHz

VSWR and Attenuation Accuracy:

       DC to 6 GHz: 1.25:1 max.

       6 GHz to 12.4 GHz :1.35:1 max.

       12.4 GHz to 18 GHz: 1.45:1 max

Attenuation: 40 dB ± 1.5 dB

Impedance: 50Ω

Connector: N, (M/F)

Operating Temperature: -65 to +125 °C

Body: Aluminum

Dimensions: 3.00" SQ x 4.75" Long

Weight: 1.66 lbs.
