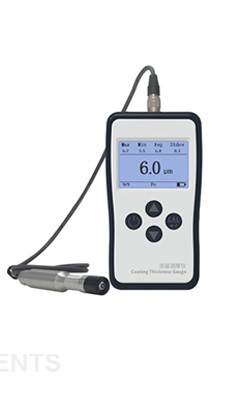

Biuged BGD 547 코팅 두께 측정기 (External cable probe, Magnetic metal, 0.0-500μm)

Probe: External cable probe

Substrate: Magnetic metal

Measuring Range: 0.0-500μm

Resolution: 0.1μm （＜100μm）；1μm（100μm～999μm）；10μm（＞1000μm）

Accuracy: ≤±（2% reading+0.3μm）

Minimum Curvature: Convex:1.5mm / Concave:10mm

Minimum Measuring Area: Diameter: 7mm

Minimum Substrate Thickness: 0.1mm

Display: 240×160 dot matrix LCD

Power Supply: 4pcs of 1.5V AAA alkaline battery

Dimension/Weight: 148mm×76mm×26mm/194g (with battery)

Optional Accessories: Hand test fixture
