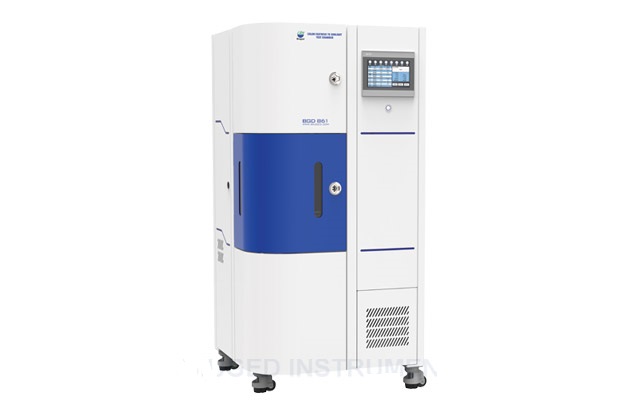

Biuged BGD 861 Color Fastness To Sunlight Test Chamber (30W/m2～90W/m2（300nm～400nm))

■ Xenon Lamp：One 1.8KW xenon lamp （imported from America）

■ Lamp Lifetime: Near 1.500 hours

■ Filter：IR Window glass filter（Also can choose daylight filter or extended UV filter）

■ Exposure Area：2.200 cm2 (12 pcs standard sample holder, can put 23 pcs samples of 137mm×45mm size)

■ Controlling irradiance point：340nm or 420nm or 300nm～400nm420nm or 300nm～800nm

■ Adjustable Irradiance Range：30W/m2～90W/m2（300nm～400nm）or 0.5 W/m2～1.35 W/m2（@ 420nm）or 0.3 W/m2～0.75 W/m2（@ 340nm）or 320W/m2～850W/m2（300nm～800nm）

■ Adjustable Black Panel Temperature Range：RT～100℃

■ Adjustable Working room Temperature Range：RT～62℃

■ Adjustable relative humidity of working room：10%～75%（Light）；10%～95%（Dark）；

■ Overall Size：860×800×1770mm (L×W×H)

■ Net Weight：200KG

■ Power Supply：AC 380V（Three-phase four-wire system）/ 50HZ；Max. Current 16 A

■ Max. Total Machine Power：5.5 kW

■ Requirements of Compressed air：Clean，oilless compressed air with 0.5MPa pressure，Max. air supply is near 60L/min. Average air consumption is 10L/min～30L/min（Depends on testing standard）
