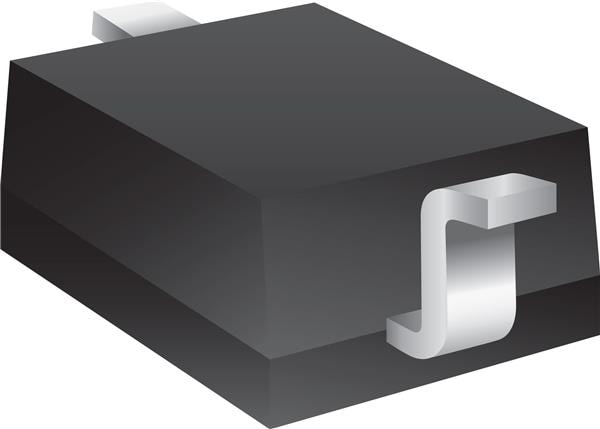

Bourns CDSOD323-T05SC TVS 다이오드 양방향 표준 용량

Polarity: Bidirectional

Unit Weight: 4.100 mg

Current Rating: 10 uA

Working Voltage: 5 V

Clamping Voltage: 14.5 V

Breakdown Voltage: 6 V

Termination Style: SMD/SMT

Number of Channels: 1 Channel

Vf - Forward Voltage: 9.8 V

Cd - Diode Capacitance: 175 pF

Ipp - Peak Pulse Current: 28 A

Vesd - Voltage ESD Air Gap: 30 kV

Vesd - Voltage ESD Contact: 30 kV

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Pppm - Peak Pulse Power Dissipation: 400 W
