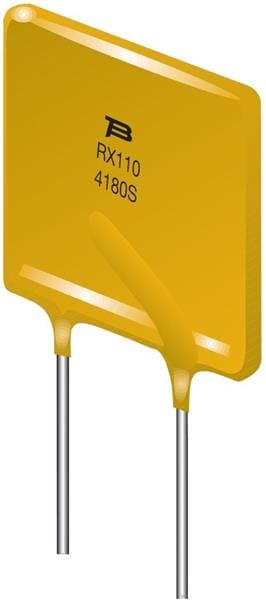

Bourns MF-RX110/72-2 PTC 리셋터블 퓨즈 72V 1.1A-HD 40A MAX

Width: 10.84 mm

Height: 3.1 mm

Length: 16.8 mm

Diameter: 10.84 mm

Resistance: 250 mOhms

Unit Weight: 563 mg

Hold Current: 1.1 A

Lead Spacing: 5.1 mm

Trip Current: 2.2 A

Mounting Style: PCB Mount

Maximum Voltage: 72 VDC

Termination Style: Radial

Current Rating - Max: 40 A

Pd - Power Dissipation: 1.5 W

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
