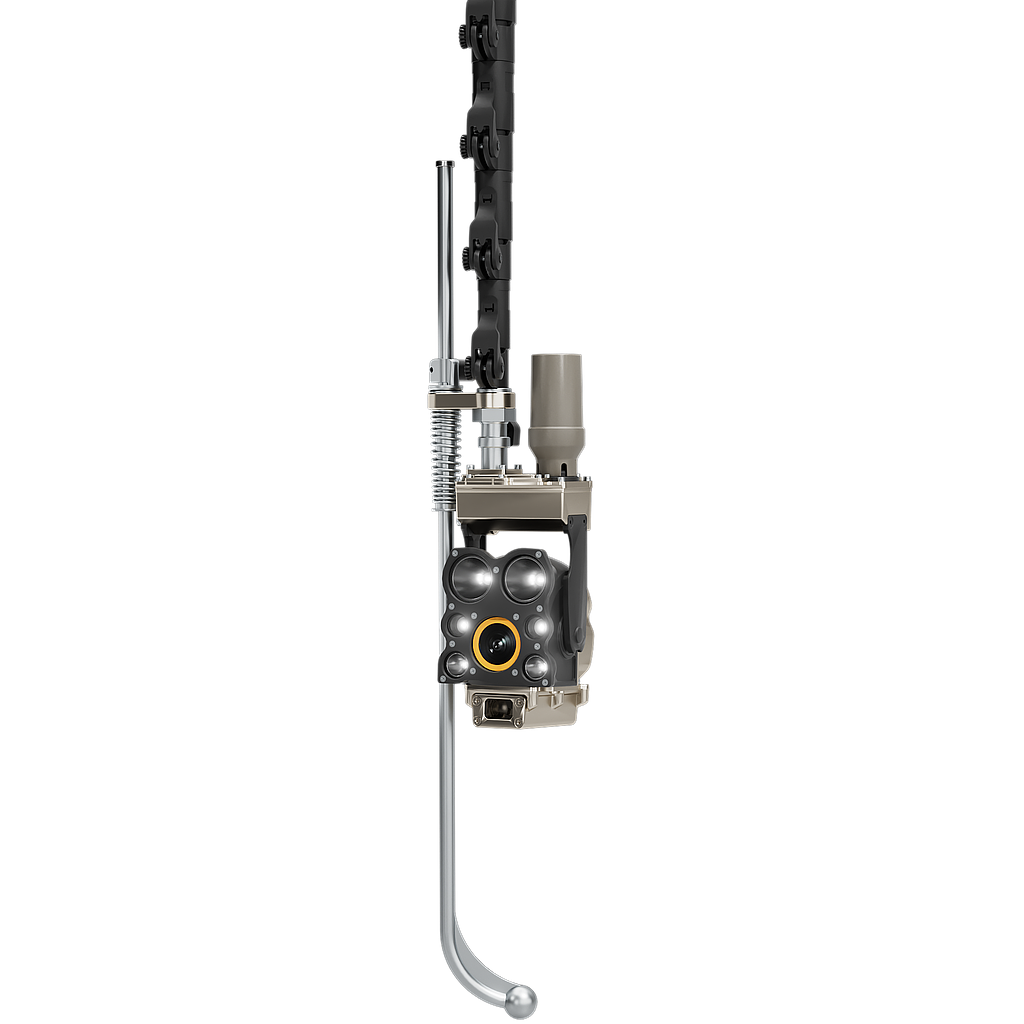

Manhole camera
Deployment range: DN150 and up
Dimensions: 120×150×350mm
Weight: approx. 2.95 kg (excl. bipod)
Protection class: IP68
Permissible ambient temperature: -10℃~55℃
Camera
Tilt range: +20°, -90°
Camera resolution:
4.0 Megapixels
Full HD
2560×1440P
Optical zoom: 25 x
Light sensitivity (lux): 0.05 Lux
Lighting
2×1.5W High-power LEDs with reflector
2×9W High-power LEDs for medium-range
2×3W High-power LEDs for close-range
Laser measuring distance: 1.5 - 70m
Laser measuring accuracy: ±5cm
Battery: Battery
Pole
Length: 5m+3m (for extension)
Material: Carbon fiber
Bipod length: 0.8m
Control unit
Dimension: 10.4 inch
Weight: approx. 447g (excl. pad case)
Operating system: Android
Display resolution: ≥1920x1200P
Display type: Capacitive (10-fingers multi-touch)
Display information: internal operating environment, date, time, pitch angle
Battery: 8h
Data storage: 128G
Connection: Type-C
Data transmission: Wifi-connection
