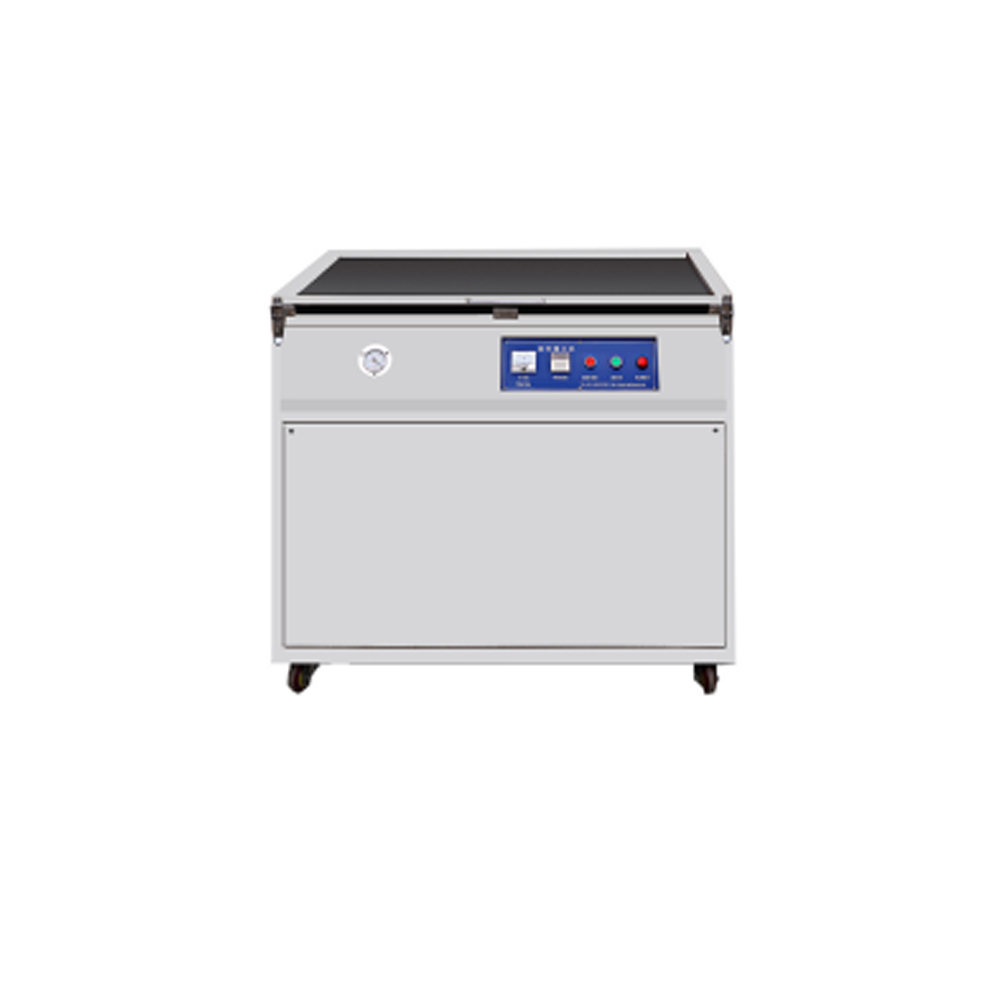

Censtar B450 PCB Vacuum Exposure Machine

1. Exposure light source: 2KW imported exposure light

2. Exposure area: 750mm X 650mm

3. Exposure time: 0-999 seconds can be set

4. Suitable process: circuit, solder mask, character exposure

Exposure processing of lines, solder masks, and text inks in the PCB manufacturing process

Features

Equipped with a vacuum pump, it has double-sided vacuum adsorption function, which can make the film stick more closely to the PCB board. It adopts Philips imported ultra-long life, arc stable, 2KW high-power iodine gallium lamp to ensure uniform exposure and fast speed. Imported sealing blanket and high-performance vacuum compressor are used to ensure that all parts of the exposed object can be fully and evenly exposed.
