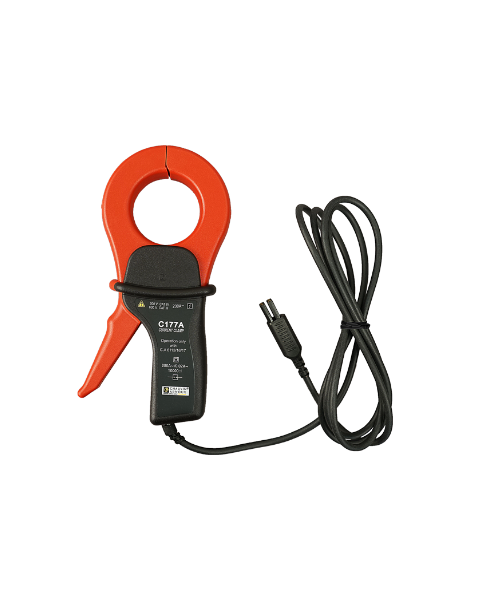

Chauvin Arnoux C177A AC Current Probe (5mA ~ 200A, 2.05")

Meter Compatibility: C.A 6116N, C.A 6117

Maximum Clamping Diameter: 2.05" (52mm)

Current Range: 200A

Measurement Range: 5mA to 200A

Transformation Ratio: 10,000:1

Output: 6.5ft (2m) lead with proprietary CA connector

Operating Temperature: 32° to +113°F  (0° to +45°C); 90% RH

Storage Temperature: -40° to +158°F  (-40° to +70°C)

Operating Relative Humidity: 90% RH

Dimensions  (HxWx D): 8.50 x 4.37 x 1.77” (216 x 111 x 45mm)

Weight: 1.21 lb (550g)

C177A is designed for use with Multi-Function Installation Testers Models C.A 6116/6116N, and C.A 6117
