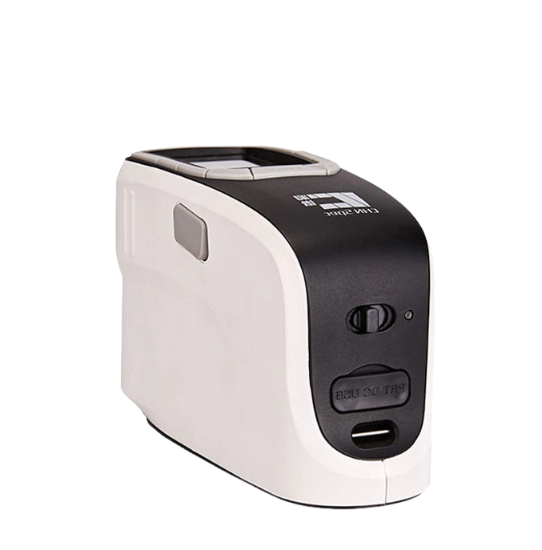

CHN SPEC CS-600B 휴대용 분광광도계 (d/8, 400~700nm, 4mm/6mm, 0.5s)

Illumination: d/8(Diffused lighting, 8 degrees observe angle),SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement.(conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards)

Size of integrating sphere: Φ40mm, Alvan diffused reflection surface coating

Illumination Light source: CLEDs(entire wavelength balanced LED light source)

Wavelength Range: 400-700nm

Observation angle: 2°/10°

Measurement light source: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF

Caliber: Φ6mm/Φ4mm

Data being displayed: SPD distribution/data,sample's color values,color difference values/graph,pass/fail results,color error tendency,color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report

Measurement time: 0.5 second

Color space: CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance, Hunterlab,Munsell MI,CMYK, RGB, HSB

Color difference formulas: ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00, ΔEab(Hunter),555,color classification

Other colorimetric indices: WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz)

Metamerism index Milm, Stick color fastness, Color fastness, ISO luminance, 8 gloss, A density, T density

Repeatability:

light splitting reflectivity:standard deviation within 0.08%

color values: ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals), Maximum:0.05

Battery capacity: rechargeable, 10000 continuous tests, 7.4V/6000mAh

Light source longevity: 10 years, 3 million tests

Inter-instrument agreement: ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)

Size: 181*73*112mm(L*W*H)

Weight: about 550g(does not include battery's weight)

Display: True color screen that includes all colors

Work temperature range: 0~45℃, relative humidity 80% or below( at 35°C ),no condensation
