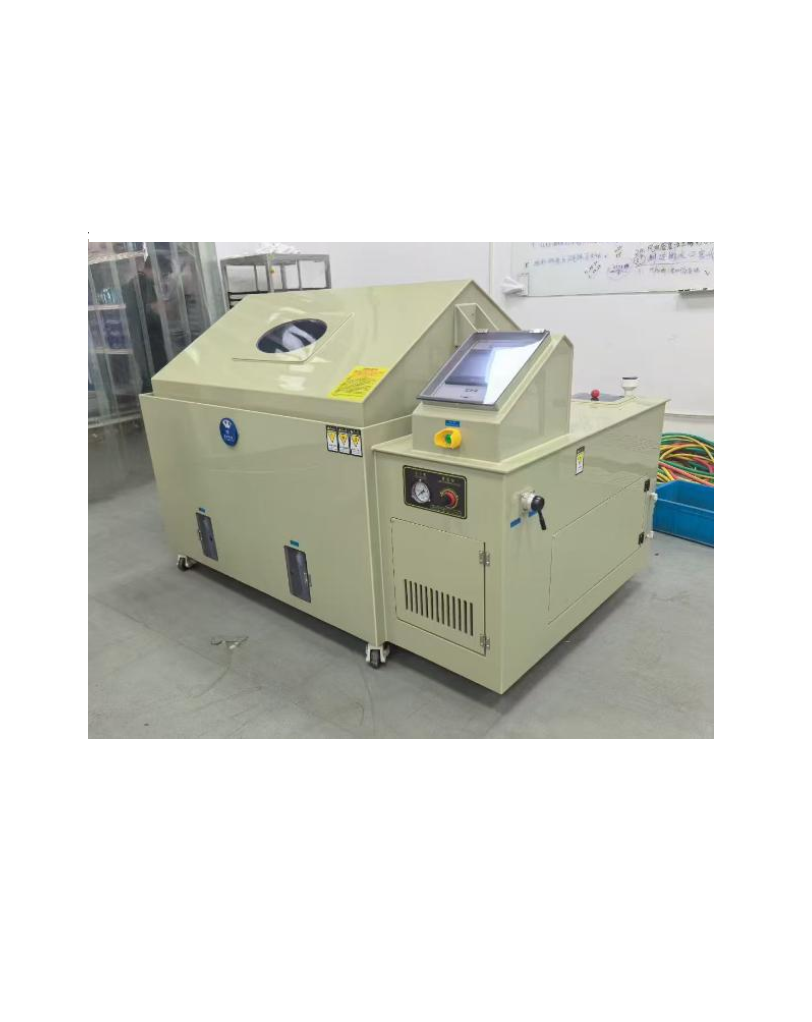

Climatest Symor TQ-020B Salt Spray Test Chamber (1–2 ml/80 cm²·h, RT+10°C～65°C, ≥ 95%RH)

Temperature Range

Chamber: RT+10°C～65°C

Air Saturator: RT+37°C～70°C

Humidity Range: ≥ 95%RH

Temp. Uniformity: ≤ ±2.0℃

Temp. Fluctuation: ≤ ±0.5℃

Salt Fallout Rate: 1～2ml/80 cm².h（ average value in 16 hrs）

Spray Method: Continuous or periodic (Alternative)

Timing: 1s～999 (S,M,H), settable

Spraying Tower: 2 pcs, baffle-type spray

Installation Site

Good air ventilation

Flat floor

No fierce vibration

No electromagnetic

No inflammable and explosive materials

Requirement

A: ≥60cm B: ≥60cm C:≥120cm

Attention: inclination should not exceed 15°

Ambient

Temperature: 5°C～＋ 35°C

Humidity: ≤85%RH

Air Pressure:86kPa～106kPa

Voltage: 380V/50HZ, 9.5KW, 3 phase

Noise: ≤70 decibels

Datasheet
