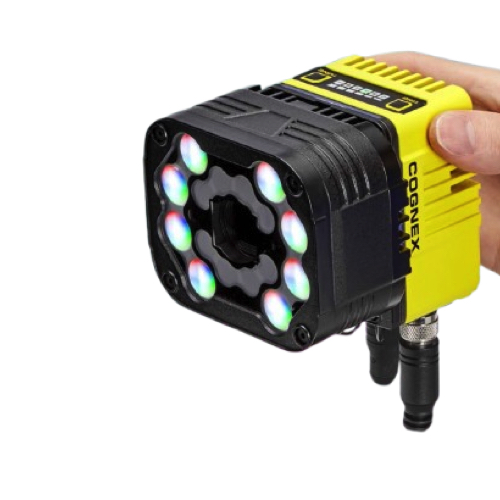

Cognex 3805CS-00001-SA Vision Insight (2448 x 2048 px; 2/3” CMOS, 21 fps)

Resolution (H x V Pixels): 2448 x 2048

Sensor Type: 2/3” CMOS, global shutter

Sensor Properties: 11.1 mm diagonal, 3.45 x 3.45 μm square pixels

Frame Rate: 21 fps

Bit Depth: 24-bit color

Electronic Shutter Speed: 19.1 μs to 200,000 μs

Memory: 4 GB

Lens: No

Lens Cover: No

Lighting: No

Toolset: EasyBuilder/Spreadsheet, all tools

Trigger: 1 opto-isolated, acquisition trigger input

Discrete Inputs: 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable.

Discrete Outputs: Up to 4 high-speed outputs when connected to the Breakout cable.

Status LEDs: Pass/Fail LED and Indicator Ring, Network LED and Error LED.

High Speed Liquid Lens Lifespan: Number of Focus Cycles: 1800 M cycles

Job/Program Memory: 7.2 GB non-volatile flash memory; unlimited storage via remote network device.

Image Processing Memory: 512 MB SDRAM

Network Communication: 2 Ethernet ports, 10/100/1000 BaseT with auto MDIX. IEEE 802.3 TCP/IP Protocol. Supports DHCP, static, and link-local IP address configuration.

Power Consumption: 24 V DC ± 10%, 2.0 A maximum.

Power Output: 24 V DC at 1.0 A maximum to external light.

Material: Die-cast and extruded aluminum housing.

Mounting: Four M3 threaded mounting holes; Pattern: 38.5 × 58.5 mm (1.52 × 2.60 in).

Weight: 570 g

Operating Temperature: 0° C to 40° C (32° F to 122° F)

Storage Temperature: -20° C to 80° C (-4° F to 176° F)

Humidity: <95% non-condensing

Protection Rating: IP67 with all cables properly attached (or supplied connector plugs installed), and the standard IP67 cover or Multi-Torch cover properly installed.

Certifications: CE, FCC, KCC, TÜV SÜD NRTL, EU RoHS, China RoHS
