Algorithms and Technologies: 1DMax, 2DMax, Hotbars, PowerGrid
Image Sensor: 1/3 inch CMOS
Image Sensor Properties: Diagonal 6.21 mm, 3.45 μm square pixels
Image Resolution: 1440 x 1080 pixels (1.6 MP)
Weight: 16 mm assembly: 97 g
Power: USB powered: USB BC 1.2 port, USB 3.0 port with 4.5 W or higher, USB-C with USB-PD (5 V/3 A); External power supply: +5 – +24 V DC. Supplied by limited-energy circuit according to IEC/ UL/ CSA 61010-1
Power comsumption: Average: 3.3 W | Maximum: 4.2 W
Light: Red HPIL
Lens: 16 mm HSLL Half Polarized
Operating Temperature: 0-40° C (32–104° F)
Storage Temperature: -10–60° C (14–140° F)
Humidity: <95% non-condensing

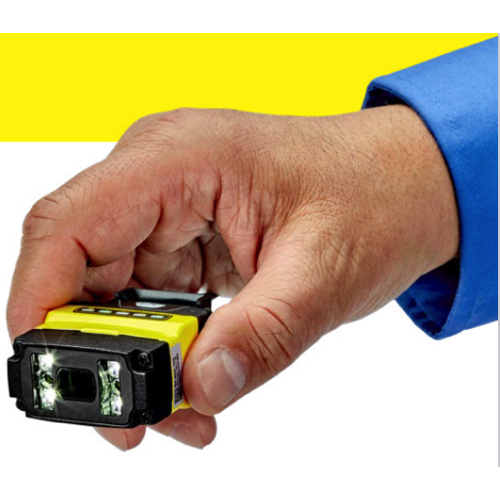

Environment: DataMan 80: IP67+B2
DataMan 80 with Sound Amplifier: IP44 Altitude: 2000 m, indoor use only, pollution degree II
Shock: IEC 60068-2-27 - 500 shocks in each polarity of each (X, Y, and Z) axis, 3000 shocks total, semi-sinusoidal,11 g, 10 ms
Shock (Shipping and storage): ISTA-1A Standardized Testing - Packaged Products 150 lb or less
Vibration: IEC 60068-2-6: vibration test in each of the three main axis for 2 hours @ 10Gs (10 to 500 Hz at 100m/s2/15 mm)
Vibration (shipping and storage): FedEx Vibration Testing for packaged products 150 lbs or less
Code: 1D barcodes: Codabar, Code 39, Code 128, Code 93, Code 25, Interleaved 2 of 5, Postal Codes, UPC/EAN/JAN, MSI 2D barcodes: Data Matrix (IDMax and IDQuick: ECC 0, 50, 80, 100, 140, and 200), QR Code, microQR, PDF 417, AztecCode, DotCode, MaxiCode
High speed output 0: I MAX : 50 mA ; V OL: ≤ ±3 V @ 50 mA
Input 0: VIL: ≤ ±6 V; VIH: ≤ ±12 V; ITYP : 4.2 mA @ 24 V
