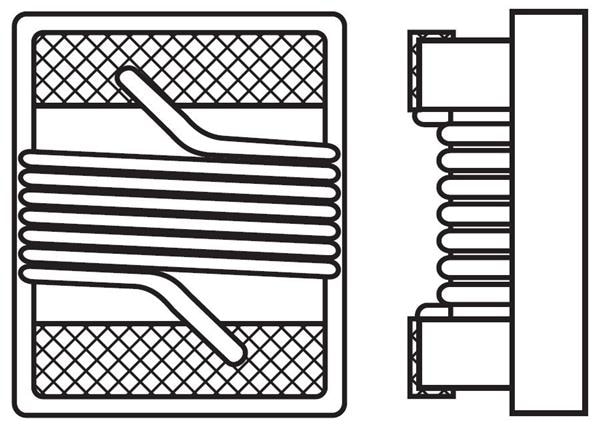

Coilcraft 1008CT-080XJLC RF 인덕터 1008 8.2nH 언쉴드 5% 600mA 220m옴

Width: 2.79 mm

Height: 1.27 mm

Length: 2.92 mm

Q Minimum: 40

Shielding: Unshielded

Tolerance: 5 %

Inductance: 8.2 nH

Application: RF

Termination: Standard

Unit Weight: 100 mg

Core Material: Ceramic

Mounting Style: PCB Mount

Test Frequency: 50 MHz

Termination Style: SMD/SMT

Maximum DC Current: 600 mA

Maximum DC Resistance: 220 mOhms

Self Resonant Frequency: 5 GHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
