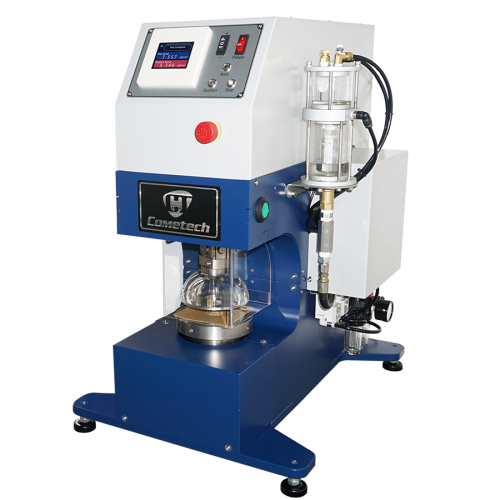

Cometech QC-116D 디지털 파열 강도 시험기

Type: High pressure/ Low pressure/ Textile

Test speed:

High pressure: 170 ± 15 ml/min

Low pressure： 95 ± 5 ml/min

Textile： 98 ± 4 ml/min

Pressure display: D1 Control touch panel

Capacity: 75 kg/c㎡

Platen diameter-Upper:

High pressure：31.5 ± 0.05 mm

Low pressure：30.5 ± 0.05 mm

Textile：30.5 ± 0.05mm

Platen diameter-Lower:

High pressure：31.5 ± 0.05 mm

Low pressure：33.1 ± 0.05 mm

Textile：30.5 ± 0.05mm

Gear position: Pressurization, neutral, return

Power: Single phase 110~240VAC，5A

Display

1. 2.8” touch screen

2. Curve graph display, test result saving

Air Exhaust Function: With built-in auto air exhaust function

Safety Design

1. safety cover

2. Abnormal pressure detection system

3. Automatic pressure reduction after test completion

Data Transmissions: Download through Wi-Fi

Calibration Compensation: Built-in deviation compensation system

Others

1.Aluminum foil：Only regular confirmation is required to prevent deviations.

2. Rubber diaphragm：Built-in compensates for pressure differences caused by diaphragm elasticity automatically.
