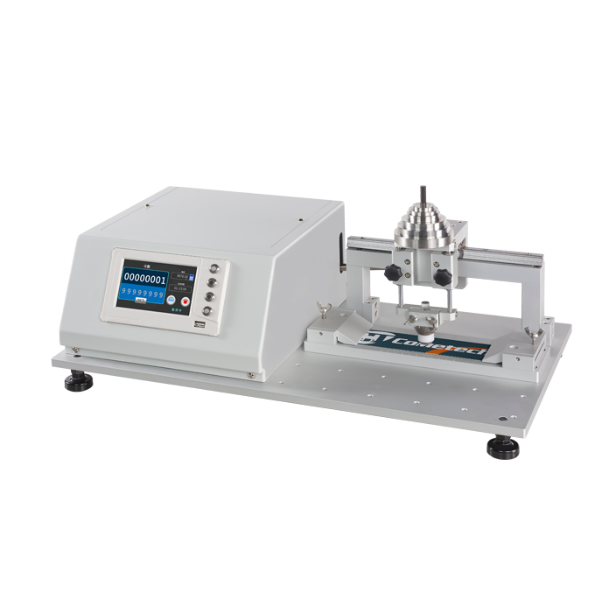

Cometech QC-622H Surface Hardness Abrasion Tester

Weight set: 25g x1, 50g x1, 100g x1, 200g x1, 300g x1, 500g x1, 1000g x1 （basic weight is 200 g）

Abrasion distance: 10 ~ 100 mm adjustable (Adjustment by hand)

Max test load: Test stroke is under 50 mm, the max. load is 8kg.

Abrasion head(optional)

           a.Φ6.35 mm sand paper abrasion head grip

           b.Φ16 mm cotton abrasion head

           c.Φ16 mm steel wool abrasion head

           d. Ø6.8mm pencil/ eraser abrasion head (without pencil/ eraser)

(customized type is available)

Sample Size: Width 20 ~ 200 mm, thickness max. 50 mm

Control Panel: 1 ~ 120 CPM Can be precisely set speed 1 ~ 99,999,999 times can be set. Auto-stop after the test is completed.

Power: 100V~240V，50/60Hz

Dimension: 65 x 35 x 40 cm

Weight: 46 kg

Datasheet
