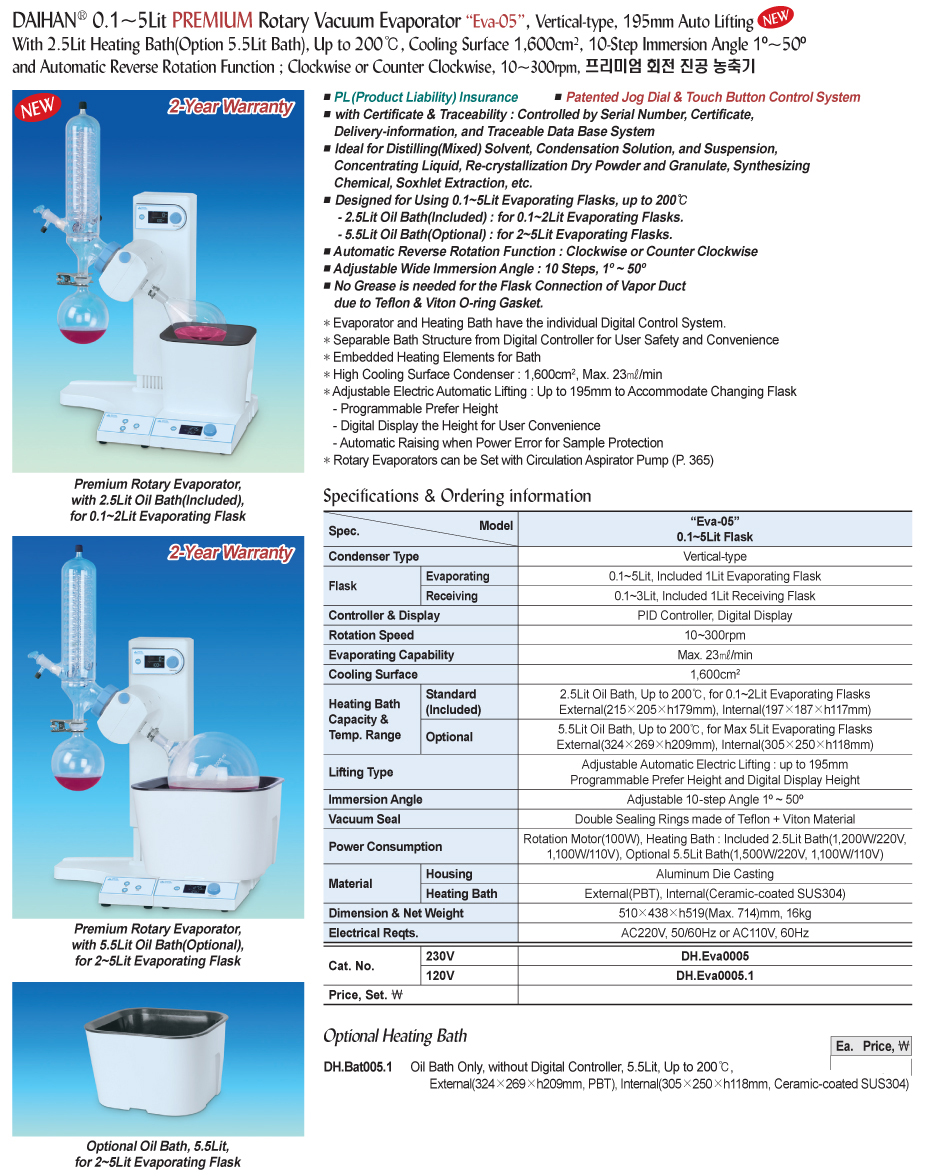

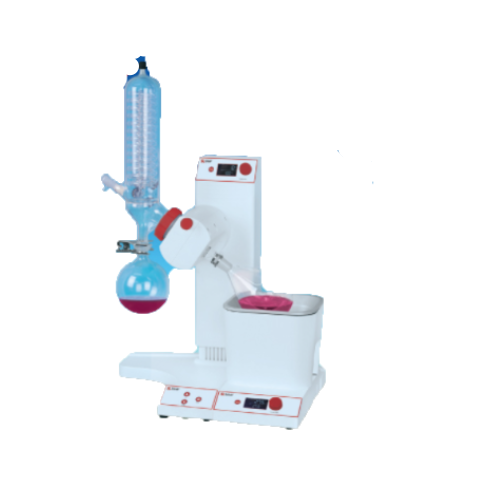

DaiHan DH.Eva0005 PREMIUM Rotary Vacuum Evaporator (230V, 10~300 rpm)

Condenser Type: Vertical-type

Evaporating Flask: 0.1-5Lit, Included 1Lit Evaporating Flask

Receiving Flask: 0.1-3Lit, Included 1Lit Receiving Flask

Controller & Display: PID Controller, Digital Display

Rotation Speed: 10-300rpm

Evaporating Capability: Max 23ml/min

Cooling Surface: 1,600cm²

Heating Bath Capacity & Temp. Range

-Standard (Included): 2.5Lit Oil Bath, Up to 200°C, for 0.1-2Lit Evaporating Flasks

                                   External(215×205Xh179mm), Internal(197×187Xh117mm)

-Optional: 5.5Lit Oil Bath, Up to 200°C, for Max 5Lit Evaporating Flasks

                External(324x269Xh209mm), Internal(305X250Xh118mm)

Lifting Type: Adjustable Automatic Electric Lifting: up to 195mm

                    Programmable Prefer Height and Digital Display Height

Immersion Angle: Adjustable 10-steps Angle 1° - 50°

                             Vacuum Seal: Double Sealing Rings made of Teflon + Viton Material

Power Consumption: Rotation Motor(100W), Heating Bath: Included 2.5Lit Bath(1,200W/220V, 1,100W/110V), Optional 5.5Lit Bath(1,500W/220V, 1,100W/110V)

Material

-Housing: Aluminum Die Casting

-Heating Bath: External(PBT), Internal(Ceramic-coated SUS304)

Dimension & Net Weight: 510×438xh519(Max. 714)mm, 16kg

Electrical Reqts: AC220V, 50/60Hz
