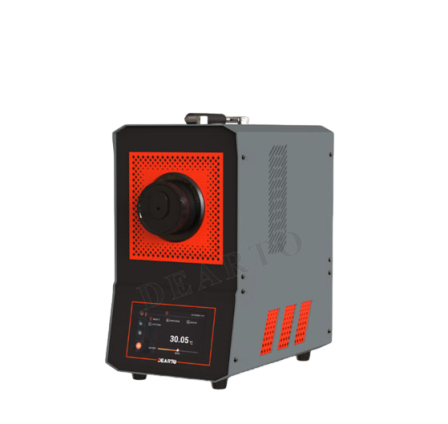

Dearto DTM-550BG Portable Blackbody Radiation Source (RT+10℃~550℃)

Temp. range: RT+10℃~550 ℃

Control method: Smart Touch Screen

Emissivity: Better than 0.995

Temp. resolution: 0.01°C (full scale)

Target size (D × L in mm): Φ65mm × 160mm

Target shape: Cylindrical / conical

Accuracy: ± 0.3℃ @ RT ≤ t ≤ 300℃; ± 0.5℃ @300℃＜ t ≤ 550℃

Stability:

± 0.1℃ / 10 min@ RT ≤ t ≤ 100℃

± 0.1℃ / 10 min@ 100℃＜ t ≤ 300℃

± 0.2℃ / 10 min@ 300℃＜ t ≤ 400℃

± 0.2℃ / 10min@ 400℃＜ t ≤ 500℃

± 0.3℃ / 10min@ 500℃＜ t ≤ 550℃

Temperature uniformity:

0.10℃@ RT ≤ t ≤ 100℃

0.30℃@ 100℃＜ t ≤ 300℃

0.45℃@ 300℃＜ t ≤ 400℃

0.60℃@ 400℃＜ t ≤ 500℃

0.75℃@ 500℃＜ t ≤ 550℃

Heating time: 35 min（50℃ → 300℃）; 58 min（50℃ → 550℃）

Cooling time: 2 h 30 min（300℃→50℃）; 3 h 30 min（550℃→50℃）

Power: 1000 W

Interfaces: RS232 / USB / WIFI / LAN

Power supply: 220V AC（±10%） / 50Hz; 5.5A

Ambient temperature: (0～45)℃; < 80% RH , non-condensing

Weight: Appr. 10 kg

Overall dimensions（mm): 345(L)× 200(W)×360(H)

*Images for illustration purposes only
