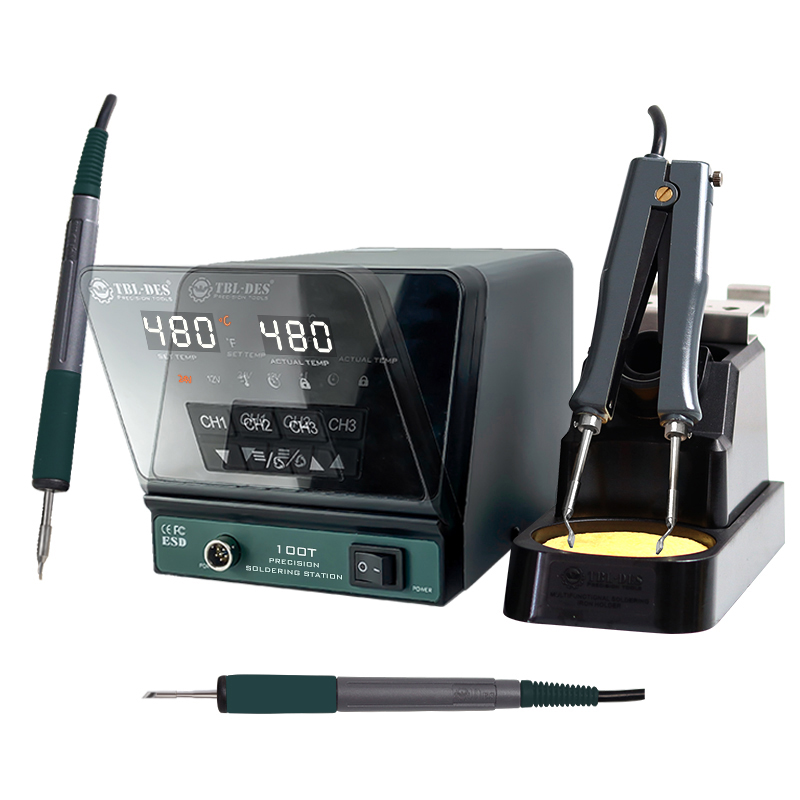

DES Tools 100T-K126M Flip screen intelligent soldering station (80–480°C; 150W)

Display: Intelligent digital display

Temperature range: 80–480°C (176–896°F)

Body size: 180 × 120 × 115 mm

Peak power: 160W

Voltage: 220V/50Hz, 110V/60Hz

Temperature stabilization: ±1°C

Body weight: 1.9 kg

Total weight: 2.8 kg

Electric tweezers handle: K126M

Temperature range: 80–480°C

Power consumption: 150W

Integrated heating core: DES TMS Series

Output voltage: 24V

High temperature resistance jacket: S126

Resistance to ground: <2Ω

Voltage to ground: <2 mV

Voltage withstand test: ≥1000V

Handle line length: 1.5 m

Handle weight: 100 g

■Choose different soldering iron according to needs: three P/N are avaiable (S126J/S126K/k126M),touch sensitive start design, Plug-in integrated soldering tip

■The sleep function and continuous work switch with one key.

■The smart sleep time is 3 seconds.

■Intelligent shutdown function: (can be set for 30 minutes -180 minutes).

■Microcomputer compensation,the temperature error is less than± 1℃.

■Removing electrostatic design, especially safe for sensitive components.
