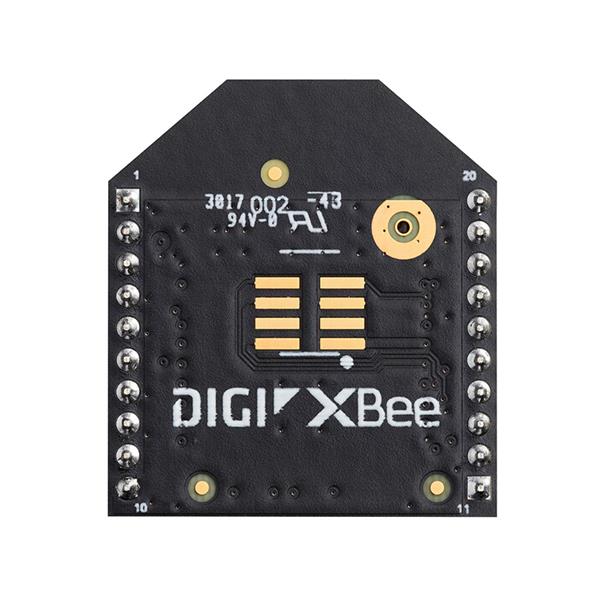

DIGI XB3-24Z8PT Zigbee 모듈 XBee3 PRO, 2.4 GHz ZB 3.0, PCB 안테나, TH MT

Range: 300 ft, 2 mile

Data Rate: 250 kb/s

Frequency: 2.4 GHz

Sensitivity: - 103 dBm

Unit Weight: 13.222 g

Output Power: 19 dBm

Interface Type: SPI, UART

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.1 V

Antenna Connector Type: PCB

Operating Supply Voltage: 2.1 V to 3.6 V

Supply Current Receiving: 15 mA

Supply Current Transmitting: 135 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - ANT, Thread, Zigbee - 802.15.4: Zigbee 3.0
