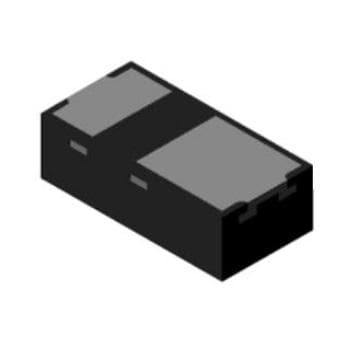

Diodes Incorporated D33V0S1U2LP1608-7 TVS 다이오드 서지 보호 PP U-DFN1608-2 T&R 10K

Polarity: Unidirectional

Unit Weight: 30 g

Working Voltage: 33 V

Clamping Voltage: 55 V

Breakdown Voltage: 36 V

Termination Style: SMD/SMT

Number of Channels: 1 Channel

Cd - Diode Capacitance: 156 pF

Pd - Power Dissipation: 300 mW

Ipp - Peak Pulse Current: 19 A

Operating Supply Voltage: 33 V

Vesd - Voltage ESD Air Gap: 30 kV

Vesd - Voltage ESD Contact: 30 kV

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C
