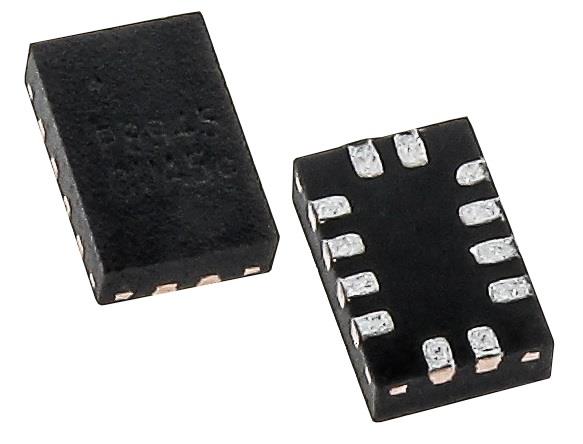

Diodes Incorporated PAM8945PJR 1채널 모노 4.0W 클래스-D 오디오 4옴 2.8~5.2V

Class: Class-G

Width: 3.1 mm

Height: 0.8 mm

Length: 2.1 mm

Shutdown: Shutdown

Unit Weight: 81.400 mg

Output Power: 4 W

Mounting Style: SMD/SMT

THD plus Noise: 0.07 %

Number of Channels: 1 Channel

Supply Voltage - Max: 5.2 V

Supply Voltage - Min: 2.8 V

Audio - Load Impedance: 4 Ohms

Operating Supply Current: 4 mA

Operating Supply Voltage: 2.8 V to 5.2 V

SNR - Signal to Noise Ratio: 95 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

PSRR - Power Supply Rejection Ratio: 70 dB
