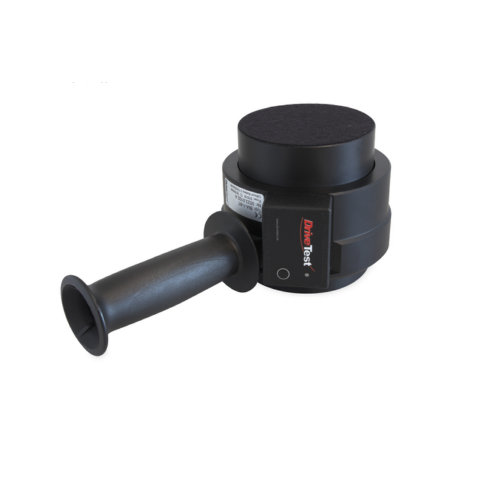

DriveTest BIA1BT Closing Force Transducer for Bus and Train Doors and Sliding Steps (25~310 N; 1 N)

- BIA-1 BT:

Measuring range: 25 ... 310 N

Accuracy: +/– 3 N or 3 % of reading

Stiffness: 10 N/mm

Resolution: 1 N

Gap width: 115 mm / 4.5"

Diameter: 100 mm / 3.9"

Measuring principle: DMS transducer

Acquisition frequency / rate: 250 Hz / 4 ms

Power supply: 5 V DC via USB max. 500 mA

Lithium polymer battery 350 mAh

Battery life under full load: more than 10 hours (continuous measurement)

Environmental conditions:

Operating temperature range: -10 to +40 °C / 14 to 104 °F

Storage temperature range:

possible: -40 to +50 °C / -40 to 122 °F

ideal: +10 to +25 °C / 50 to 77 °F

Humidity: max. 90% relative humidity, non-condensing

Dimensions: 260 x 130 x 115 mm / 10.2 x 5.1 x 4.5"

Weight : 2.1 kg / 4.6 lb

- PC evaluation software PinchPilot:

Multilingual (DE, EN, IT, FR, ES)

Graphic representation of the force curve

Calculation of important parameters

Evaluation according to different guidelines (standards)

Possibility of entering self-defined guidelines

Log printout

Data export (Excel, CSV, PDF)

- Force Meter App downloadable from Google Play Store:

Force Meter – easy-to-use app with automatic guidelines and standards updates

Time saving - immediate feedback on the measurement result including simpler report generation

Paperless office - reduces paper and the associated costs and protects the environment

Can be used individually - integration of the customer's signature possible

- System requirements software PinchPilot and App (see tab Software/App)

Delivery Scope:

1 x Closing force transducer BIA-1 BT

1 x App Force Meter available for download in the Google Play Store

1 x Software PinchPilot (USB stick)

1 x USB Cable

1 x Manual

1 x Transport case with foam insert

1 x ISO calibration certificate
