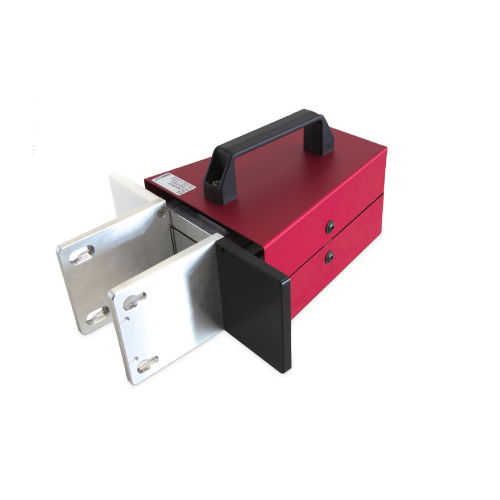

DriveTest BIA600BT Closing Force Measuring Device for rail vehicle doors, sliding steps (0~700 N)

- BIA600 BT:

Application of force: on both sides

Measuring range: 0 ... 700 N

Accuracy:

+/– 3 N (0–100 N)

+/– 3 % (>100 N)

Spring rate: 10 N/mm

Opening width: 90 mm / 3.5"

Area: 100 x 100 mm / 3.9 x 3.9"

Force sensor: DMS bridge

Dimensions: 320 x 250 x 110 mm / 12.5 x 9.8 x 4.3"

Weight : 3.0kg / 6.6 lb

- Spacers:

Complete set for all opening widths according to EN 14752:2015

Automatic detection of the spacers used

Automatic limit value adjustment according to opening width

Easy to use, quick assembly without tools

Robust design, low weight, POM

Together with BIA 600 sensor, SEB2 in a carrying case

PC evaluation software PinchPilot

Multilingual (DE, EN, IT, FR, ES)

Graphic representation of the force curve

Calculation of the standard-relevant characteristic values

Evaluation according to different guidelines possible

Custom policy adjustable

Log printout

Data export (Excel, CSV, PDF)

Optional measuring point identification

Force Meter App downloadable from Google Play Store

Force Meter – easy-to-use app with automatic guidelines and standards updates

Time saving - immediate feedback on the measurement result including simpler report generation

Paperless office - reduces paper and the associated costs and protects the environment

Can be used individually - integration of the customer's signature possible

- System requirements software PinchPilot and App (see tab Software/App)

Delivery Scope:

1 x Closing force measuring device BIA-600 BT

1 x Spacer (4 pieces) according to EN 14752:2015

1 x App Force Meter available for download in the Google Play Store

1 x Software PinchPilot (USB stick)

1 x USB Cable

1 x Manual

1 x Transport case with foam insert

1 x ISO calibration certificate
