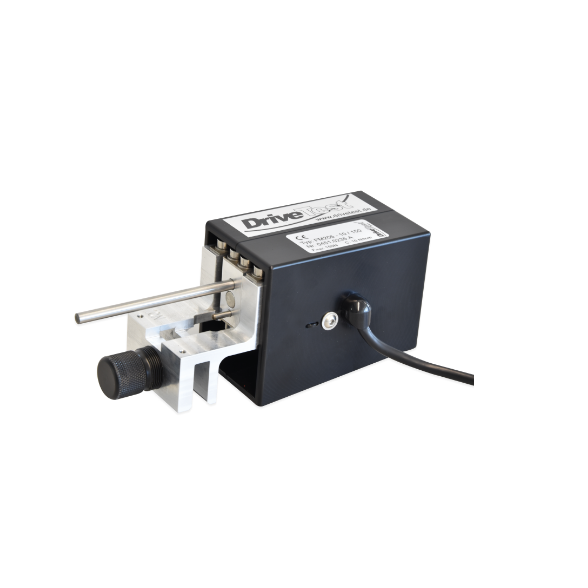

DriveTest FM205 Closing Force Transducer for automatic window regulators (0~50 N)

- FM205/2:

Application of force: on one side

Measuring range: 0 ... 50 N

Accuracy: +/– 3 N (0–100 N) or +/– 3 % (>100 N)

Spring stiffness: 2 N/mm

Gap width: Fmax. 5 mm / 0.19"

Area: 5 x 80 mm / 0.19 x 3.1"

Force sensor: strain gauge bridge

Cable length: 1.5 m / 4.9 ft

Dimensions: 175 x 75 x 57 mm / 6.8 x 2.9 x 2.2"

Weight : ca. 400 g / 14 oz

- Display device SEB2.2:

Display device SEB2.2 data logger unit with LCD display and LED status indicators, Control button, USB interface

Optional PC-controlled measurement

Lithium polymer battery

Real time clock

Memory for 100 measurements

Sensor and PC interface

Peak value display and effective power display

Rating display i. O./n. i. O.

- Spacers:

Complete set for all opening widths according to EN 14752:2015

Automatic detection of the spacers used

Automatic limit value adjustment according to opening width

Easy to use, quick assembly without tools

Robust design, low weight, POM

Together with BIA 600 sensor, SEB2 in a carrying case

- PC evaluation software PinchPilot:

Multilingual (DE, EN, IT, FR, ES)

Graphic representation of the force curve

Calculation of the standard-relevant characteristic values

Evaluation according to different guidelines possible

Custom policy adjustable

Log printout

Data export (Excel, CSV, PDF)

Optional measuring point identification

- System requirements software PinchPilot (see tab Software/App)

Delivery Scope:

1 x Closing force transducer FM205/2

1 x Sensor 2N/mm

1 x SEB2.2 indicator

1 x PinchPilot software

1 x ISO calibration certificate
