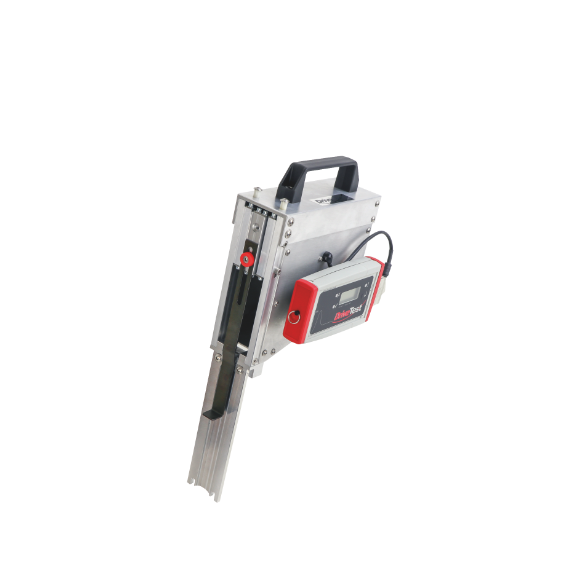

DriveTest FM208 Closing Force Measuring Device sliding roofs, automatic windows, tailgates (0~200 N)

- FM208:

Application of force:on one side

Measuring range: 0 ... 200 N

Accuracy: +/– 3 N (0-100 N) or +/– 3 % (> 100 N)

Spring stiffness: 2 N/mm, +/–(10%)

Gap width: 30 mm / 1.1"

Area: 20 x 20 mm / 0.7 x 0.7"

Force sensor: DMS bridge

Dimensions: ca. 220 x 80 x 250 mm / 8.6 x 3.1 x 9.8"

Weight : ca. 2.5 kg / 5.5 lb

- Display device SEB2:

Display device SEB2 data logger unit with LCD display and LED status indicators, control button, serial interface

Optional PC-controlled measurement

Lithium polymer battery

Real time clock

Memory for 100 measurements

Sensor and PC interface

Peak value display and effective power display

Rating display i. O./n. i. O.

- PC evaluation software PinchPilot:

Multilingual (DE, EN, IT, FR, ES)

Graphic representation of the force curve

Calculation of the standard-relevant characteristic values

Evaluation according to different guidelines possible

Custom policy adjustable

Log printout

Data export (Excel, CSV, PDF)

Optional measuring point identification

- System requirements software PinchPilot (see tab Software/App)

Delivery Scope:

1 x Closing force measuring device FM208

1 x Display unit SEB2 separate with LCD display, LED status indicators, operating button and USB interface

1 x 9 V block battery

1 x Accessory for each application: Spacer (200 mm), force inputs (clamp and platform),  monopod, bumper support block, window support block, sunroof support block, sliding roof spacer

1 x Transport case with foam insert for the complete scope of delivery

1 x PC connection cable (USB)

1 x USB stick with PC evaluation software PinchPilot

1 x Manual

1 x ISO calibration certificate
