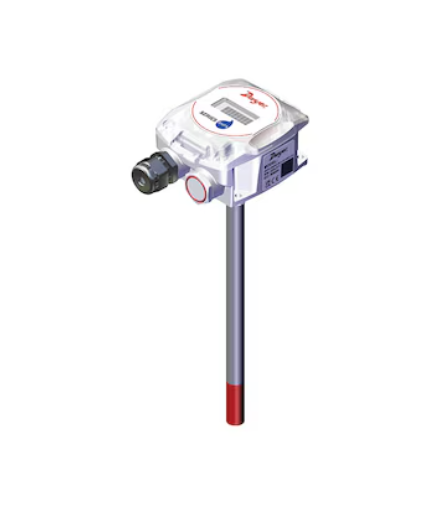

Dwyer RHPX-2SDAA-00 Relative Humidity/Temperature Transmitter (140°F (~60°C), 0–100% RH)

Cable Length: 0 ft

Current Output Range: 4 to 20 mA

Display Type: N/A

Electrical Connection: Removabe Screw Terminal Block

Enclosure Ratings: IP66

GrossWeightValue: 0.9

Materials: UL 94 V-0

Mounting Orientation: Duct Mount

Operating Temperature, Max: 140 °F

Operating Temperature, Min: -4 °F

Output Signal: Current, Voltage

Probe Style: Plenum plastic probe and hydrophobic filter

Process Connection Size: 1/2" NPS Thread, Cable gland included

Relative Humidity: 0 to 100% RH

Relative Humidity Accuracy: ±2% (10 to 90% RH) @ 25°C

Sensor Type: RH: Capacitive Polymer, Temperature: 10K Ω @ 25°C Thermistor Type III

Storage Temperature, Max: 158 °F

Storage Temperature, Min: -22 °F

Supply Voltage: 4-20 mA: 10 to 35 Vdc; Vout: 15 to 35 Vdc or 15 to 29 Vac

Temperature Accuracy: ±0.36 °F

Thermistor Input Range: -40 to 60 °C

Voltage Output Range: 0 to 5 Vdc, 0 to 10 Vdc

Weight: 198.4 g
