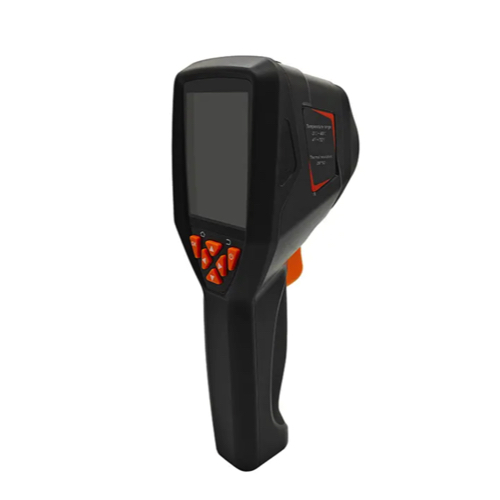

DYT DP-11 Thermal Camera (120×90; -20~400℃)

Infrared

IR detector resolution: 120×90

Spectral range: 8~14um

Refresh rate: 25Hz

NETD: 70mK@25℃

FOV: 38°X50°

Lens: 2.3mm F1.1

Measurement range: -20~400℃

Measurement accuracy: ±2°C or ±2%

Measurement option: Highest, lowest, central and zone temperature

Color palette: Iron red, dazzling white, hot black, iridescent, hot red,

high-contrast, hot green, molten lava

Image mode: Edge blend, overlay blend, Pip, thermal, visible light

General: Screen size: 2.8 inch

Visual resolution: 1280×720

Language: English, French, Germany, Spanish, Arab, etc

Interface: USB Type-C

Battery: 2600mAh Li-ion rechargeable

Working time: Around 4 hours continuous use

Working temp: -10°C~+60°C

Storage temp: -40°C~+85°C

Product size: 70mmx80mmx200mm

Net weight: 310g

Memory storage: 8G build-in card, store more than 5,000 pictures

Picture format: Support JPG

Video format: Support MP4

Datasheet
