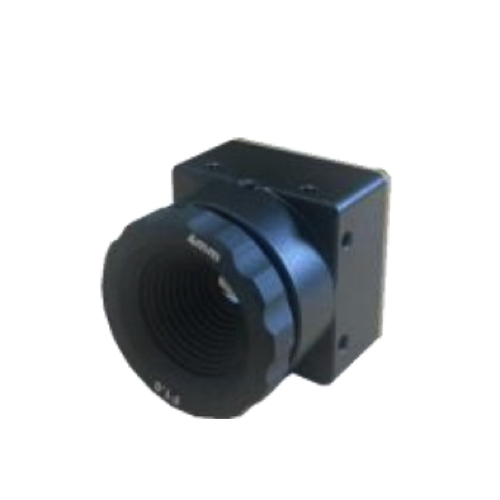

DYT DY-256M Thermal Imaging Module (256×192; -15℃ ~ 550℃)
제조사DYT(이 브랜드의 다른 제품 보기)
ModelDY-256M
문의하기
안전한 결제
품질 보장
간편 교환 및 반품
배송 가능
General
Detector type: Uncooled Vox
Spectral range: 8~14 μm
IR resolution: 256×192
Pixel: 12μm
NETD: ＜50mK @25℃, F#1.0, 25Hz
Thermal time constant: ＜10ms
Refresh rate: ≤25Hz
Non-uniformity correction: Automatic shutter correction
Image output 10bit/14bit (switchable)
Focus: Fix or manual
Measurement
Measurement range: -15℃~ 150℃ (high quality); 50℃~550℃ (wide range)
Accuracy: ±2℃ or ±2%
Electrical
Power: 1.8V, 3.3V
Image date interface: VoSPI/DVP
Control interface: I2C
Consumption: Normal: 270 mW; Shutter: 1200mW
Dimension: 21mm×21mm×21mm
Environment
Working temperature image: -40℃~80℃
measurement: -10℃~75℃
Storage temp: -45℃~85℃
Shock: 25g, 11ms
