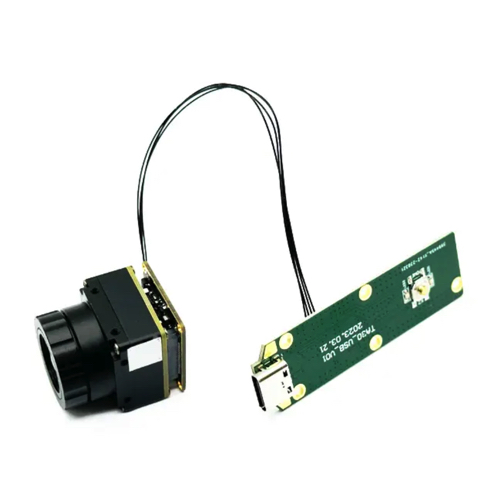

DYT DyMN-384 Thermal Imaging Core (384×288; 29.2°×21.7°; -20℃~+450℃)
제조사DYT(이 브랜드의 다른 제품 보기)
ModelDyMN-384
문의하기
안전한 결제
품질 보장
간편 교환 및 반품
배송 가능
Detector type: Uncooled Vox
Spectral range: 8~ 14 μm
IR resolution: 384×288
Pixel: 12μm
NETD: ≤50mK@25℃,F#1.0 (≤40mK optional)
FOV: 29.2°×21.7°
Lens: 9.1mm F1.0
Refresh rate: image: 50Hz/25Hz; temperature: 25Hz
Image processing: Non TEC algorithm, Non uniformity correction, Digital filter noise reduction, Digital details enhancement
Image output: 10bit/14bit (switchable)
Focus: Fix or manual
Measurement range: -20℃~+150℃, 0℃~+450℃
Measurement accuracy: ±2℃ or ±2%
Measurement mode: Point, line, box
Power supply: 1.8V, 3.3V, 5V*2
Comsumption: @25℃: ＜0.6W
Image interface: SPI/DVP
Control interface: I2C
Dimension: 21mm×21mm
Weight: 9 g
Working temperature: -40℃~+80℃
Storage temp: -50℃~85℃
Shock: 80g@4ms
