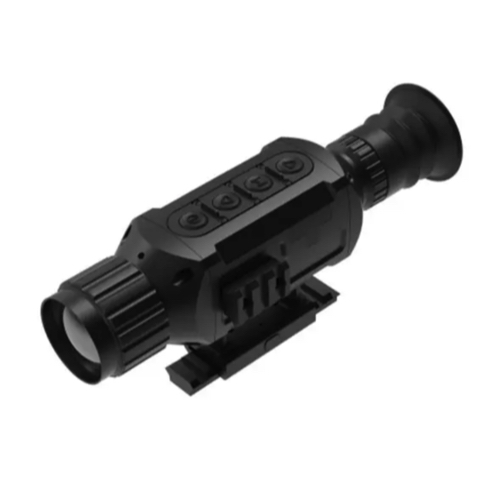

DYT GS-03S Thermal Imaging Riflescope (384 x 288; 35mm, F/1.0)

Infrared

Detector resolution: 384 x 288

Spectral range: 8~14um

Refresh rate: 25Hz

NETD: 45mK@25℃

Object pieces

Lens: 35mm F/1.0

FOV: 11°x 8°

Focus mode: Manual

Focus range: ≥2 meters

Eyepieces

Eyepieces resolution: 1024 x 768

Diopter adjust: ±6.00DS

Zoom: 14X

Display type: OLED

Display resolution: 1024 x 768

Display size: 0.39 inch

Functions

Zoom: 1X, 2X, 4X

Palette: Iron red, white hot, black hot, green, rainbow, red hot

Hot spot: Support

Photograph: Support

Storage: Built-in 32G memory

Lightness adjust: 5 level

Laser rangefinder: Optional, via USB

Transmission: USB Type-C, HDMI

Power supply

Battery: 4 x CR123A detachable battery

Duration time: ≤5 hours

Power charging: Charging with external battery pack or using disposable batteries

Working

Working temperature: -10℃~+50℃

Storage temperature: -20℃~+60℃

Anti-shock: 1000g

Water proof: IP65

Size/weight

Shock mount: Different options

Net weight: 740g

Size: 227mm x 60mm x 83mm

Detection distance

Vehicle: ≤3450 meters

Human: ≤2300 meters

Boar: ≤2060 meters

Recognition distance

Vehicle: ≤880 meters

Human: ≤580 meters

Boar: ≤520 meters
