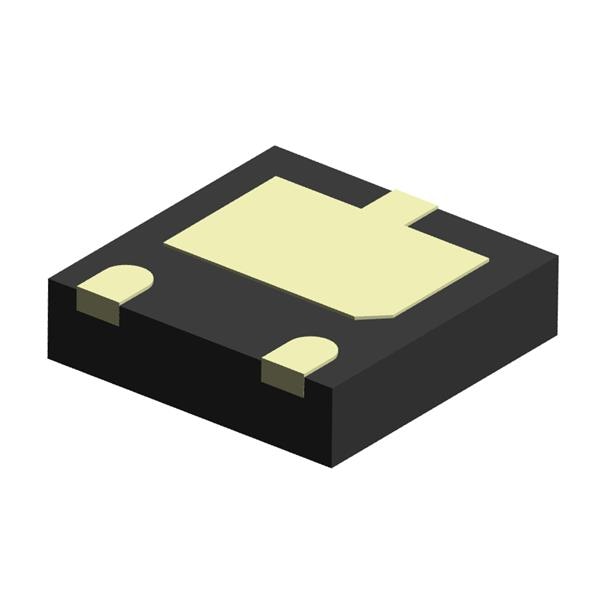

Eaton STN202120U952 ESD 서프레서 ESD 12V UNI

Polarity: Unidirectional

Unit Weight: 6.520 mg

Working Voltage: 12 V

Clamping Voltage: 25 V

Breakdown Voltage: 10 V

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Cd - Diode Capacitance: 950 pF

Ipp - Peak Pulse Current: 240 A

Vesd - Voltage ESD Air Gap: 30 kV

Vesd - Voltage ESD Contact: 30 kV

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C

Pppm - Peak Pulse Power Dissipation: 4.5 kW
