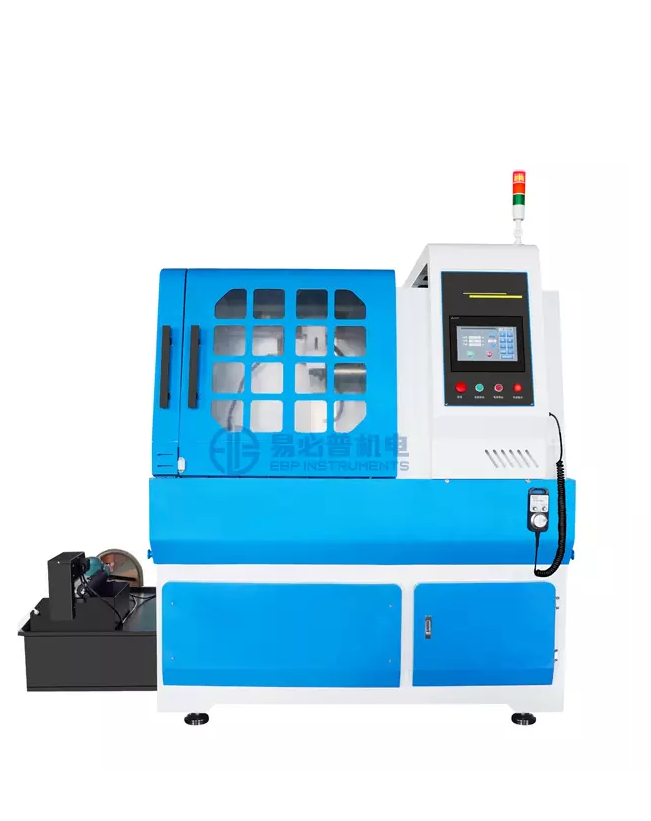

EBP CM-170XYZ Automatic Metallographic Sample Cutting Machine (Φ450x32x4mm, 0-2600r/min)

Cutting mode: Flat push cutting, Chop cutting, sweep cutting

Motor: Variable frequency motor; 7.5kw, speed; 0-2600r/min

Control system and screen: Mitsubishi programmable controller, with 10-inch Mitsubishi touch screen

Abrasive cutting wheel size: Φ450*32*4mm

Cutting feed speed: 1~200mm/min (Suggest 5~12mm/min)

Work table size: 600*800mm (X*Y)

X Axis Travel: 150mm

Z Axis Travel: 290mm

Y Axis Travel: 750mm

Max. Cutting Capacity: Ø170mm

Water Tank Capacity: 150L

Power: Three-phase five-wire, 380V 50HZ， 6KW

Dimensions: 1850*1650*1900mm

Net weight: Around 2500KG

Standard delivery:

Machine body CM-170XYZ: 1set

Water tank (Including pump): 1set

Abrasive cutting wheel 450×5×32mm: 2pc

Water Outlet Pipe: 1pc

Water Inlet Pipe: 1pc

Large throat band: 2pc

Wrench 46mm: 1pc

Wrench 62mm: 1pc

Wrench 17-19mm: 1pc

Manual book: 1pc

This machine is a Mitsubishi PLC controlled automatic metallographic sample cutting machine, with X, Y, Z directions automatically and precisely controlled. With intelligent cutting, the amount of feed can be adjusted depending on the material’s hardness to achieve the fastest cutting effect. Cutting speed is frequency conversion controlled, which has very high reliability and control ability.
