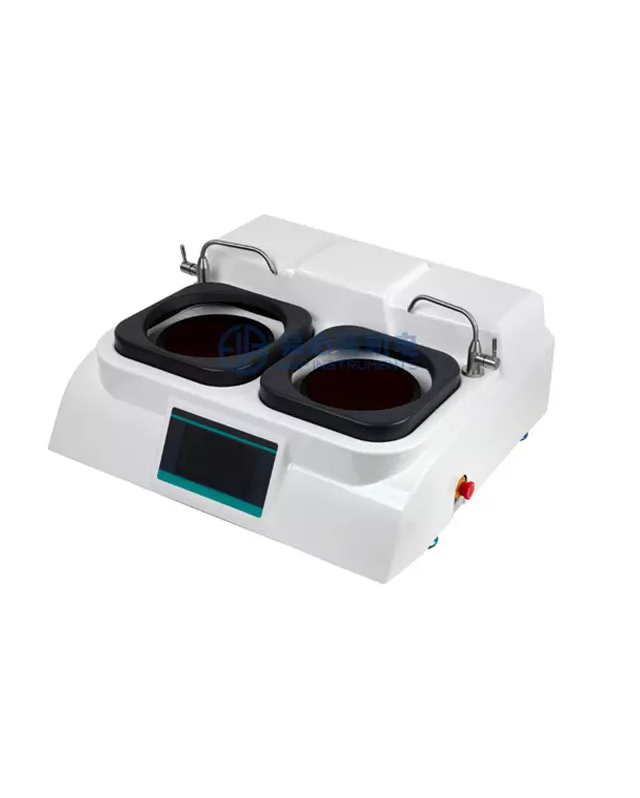

EBP eGP-2BMT Metallography Sample Grinding Polishing Machine (φ203mm, 50-1000 r/min)

Screen: 7’’ touch screen

Working disc size: Standard φ203mm / 8-inch (option:φ250mm, φ230mm)

Disc control: Two independent disc control

Speed:

Stepless: 50-1000r/min

Constant speed: 300r/min, 400r/min, 500r/min, 600r/min, 700r/min, 800r/min, 900r/min, 1000r/min (Constant speed can be set by clients)

Rotate direction: Clockwise - Anticlockwise (reversible)

Speed control: Touch screen

Working mode: Manual

Motor power: 0.55KW

Power supply: AC220V, 50Hz

Dimension: 860×810×470mm

Weight: 45kg

Standard accessories:

Pressing ring φ203 (on machine): 2 pieces

Water outlet pipe φ32: 1 piece

Abrasive paper: 2 piece2

Water retaining ring: 2 pieces

Polishing cloth: 2 pieces

Water inlet pipe: 1 piece

Manual: 1 piece

1. 7’’ Color Touch screen with menu structure, operate very easy;

2. Double independent work discs, in same time can do different grinding polishing work by right and left disc, one eGP-2BMT is equivalent to two single disc machine, high working efficiency;

3. Multi-usage, metallographic specimen of coarse grinding, fine grinding, coarse and fine polishing, one machine to complete

4. Stepless speed 50-1000rpm + 8 constant speed design, setting more easier.

5. Easily manual replace magnetic anti-sticking disc, can make all kinds of sample of coarse and fine grinding, coarse and fine polishing all process (optional purchase)

6. Support different rotating direction: counterclockwise and clockwise

7. Low noise, stable working performance and beautiful outlook.

8. The faucet adopts stainless steel 304 material, which has good corrosion resistance

9. The shell is made of high-end ABS, which is novel and beautiful in appearance.
