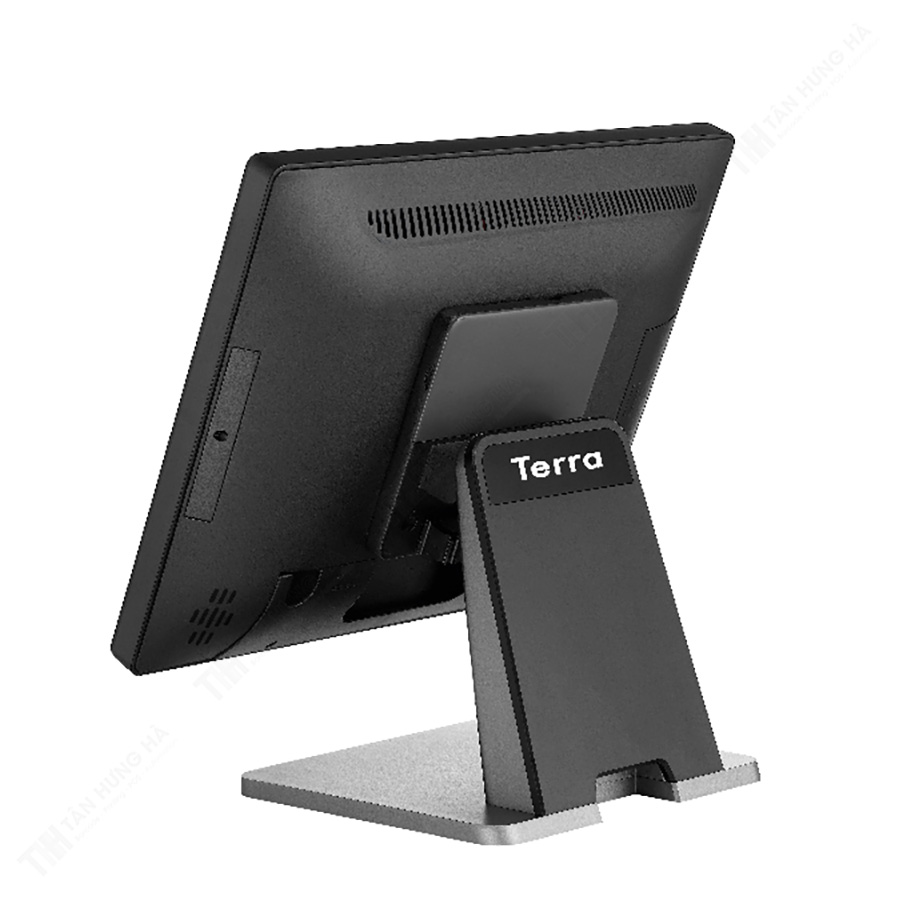

Elanda T1e POS 단말기 (Intel Elkhart Lake J6412 2.0GHz; Intel Core i3-Skylake; Intel Core i5-Skylake)

CPU: Intel Elkhart Lake J6412 2.0GHz (boost up to 2.6GHz, 1.5MB cache); Intel Core i3-Skylake (3MB Cache); Intel Core i5-Skylake (4MB Cache)

RAM: 4GB

Internal Storage: 16GB; 32GB

Operating System: Windows 11/10; LTSC; Ubuntu 20.0.4

Main Display: 15 inch

Main Display Resolution: 1024 x 768

Secondary Display: 9.7 inch; 11.6 inch; 12.1 inch

Secondary Display Resolution: 1024 x 768; 1366 x 768; 1280 x 800

Touch Screen: Supported

Power Supply: 12V-5A/60W

Speaker: 2 x 2W (Optional)

I/O Ports: 4 x USB 3.0, 2 x Serial port (1 x RJ50 + 1 x DB9); 2 x USB 3.0 + 2 x USB 2.0, 2 x Serial port (RJ50)

Operating Temperature: 0°C ~ 35°C

Storage Temperature: -15°C ~ 60°C

Humidity: 20% - 85% RH

Dimensions (W x D x H): 360mm x 180mm x 330mm

Weight: 4.5Kg

Certifications: CE, FCC, UKCA, ROHS

Datasheet
