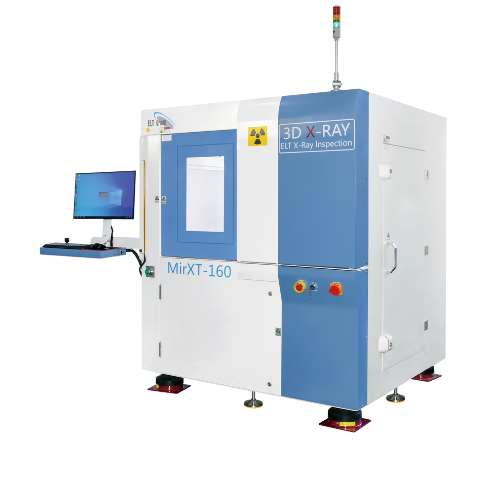

Electronicstalk MirXT-160 3D CT 엑스레이 (410mm×410mm)

System Magnification and Resolution

Geometry Magnification Time: 2100x

Total Magnification: >23000X

Details Resolution: Up to 0.35 microns

Submicron X-ray Tube: Open micron tube, transmission tube head, 170 °radiation Angle, collimation function

Maximum Tube Voltage: 160KV

Maximum Power: 20W

Target: Non-toxic carrier tungsten target and can be rotated for multiple uses

Vacuum System: Oil-free low vacuum pump + turbo molecular vacuum pump

Detector: 1536*1536 pixel

Control Platform: X-ray automatic navigation system, can achieve internal and external navigation

Overall Structure: High precision anti-vibration, 5-axis synchronous drive

Maximum Detection Range: 410mm×410mm

Maximum Work piece Size/Weight: 510mm×510mm/5kg

Probe WNW Triangle View Rotated: Adjustable viewing Angle 70°，n×360°

Control: Joystick control or mouse (manual mode) CNC programming Control(automatic mode)

Control AIDS: X-ray image navigation map, click to move function, click to enlarge function, Automatically maintain the center of vision function, laser positioning and aiming

Anti-Collision System: Prevent the test sample from colliding with the ray tube

Image processing software

ELT x/act base: Comprehensive X-ray image analysis software includes image contrast enhancement and filtering. measurement, CNC programming

BGA mode: BGA solder joint automatic detection function

VC mode: Automatic calculation of void area ratio, including multi-chip mounting void detection function

System scale (WxHD): 1650mm*1680mm*1955mm (Excluding console and detachable rear extension)

Console Height Adjustable: 320mm

Maximum Weight: About 3050kg

Radiation safety protection: Safety shielding room with lead steel protective structure and lead glass Windows, in accordance with German and American safety design standards for X-ray equipment

Radiation leakage dose rate: <1.0m Sv/h, in line with international standard

Applications:

BGA (Ball Grid Array)

CSP (Chip Scale Package)

Flip Chip

LED semiconductor 3D detection

SMT welding analysis

3D CT scanning system (plane CT + Cone-beam CT)
