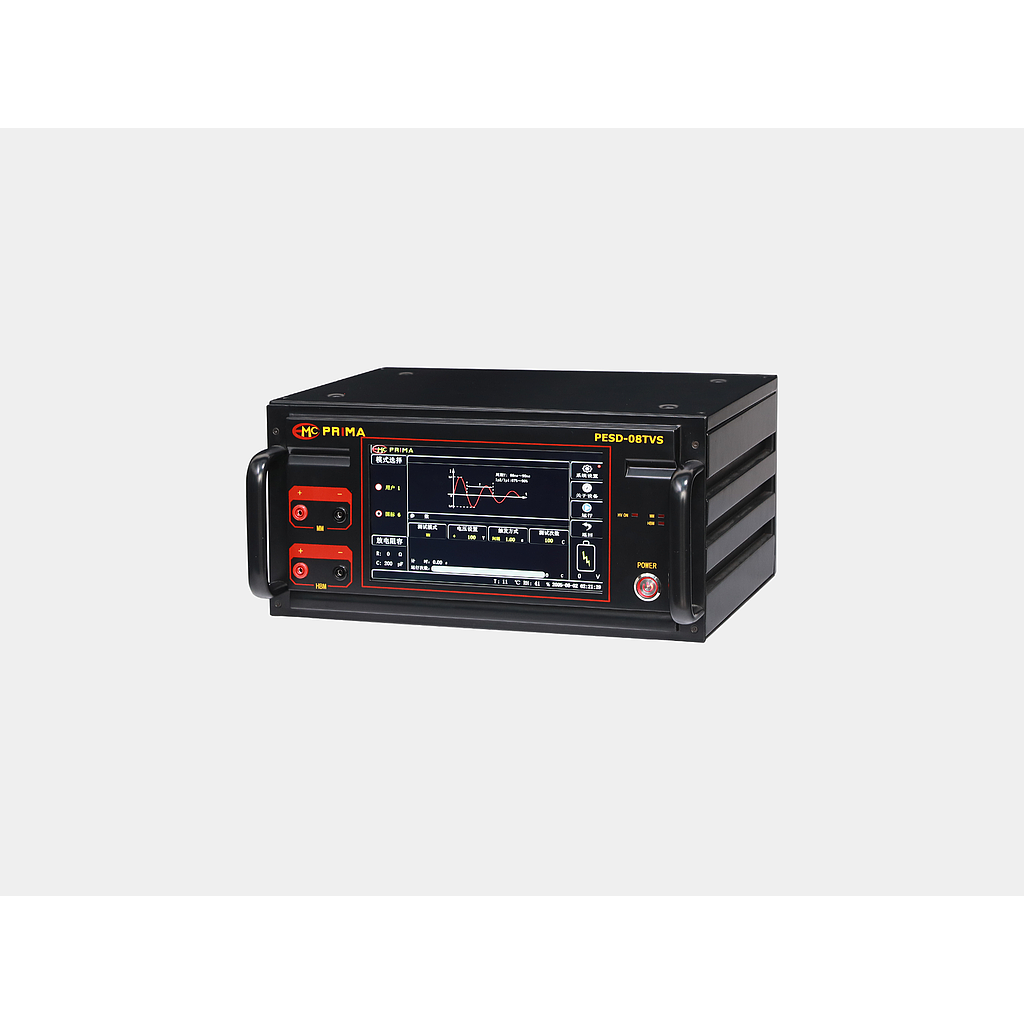

EMC Prima PESD-08TVS ESD Simulator (HBM:100V～8000V ±10%; MM:100V～800V ±10%)

HBM:

Voltage Range: 100V～8000V ±10%

RC Model: C: 100pF; R: 1500Ω

Output Polarity: +，-，+/-，-/+

Step Voltage: 0.0V～2500.0V

Interval: 1.00～99.99s

Discharge Times: 1c～9999c

Trigger Mode: Auto

MM:

Voltage Range: 100V～800V ±10%

RC Model: C: 200pF; R: 0Ω

Output Polarity: +，-，+/-，-/+

Step Voltage: 0.0V～800.0V

Interval: 1.00～99.99s

Discharge Times: 1c～9999c

Trigger Mode: Auto

- ergonomic design

- 10.1 inch color touch screen operation

- positive and negative polarity arbitrary conversion

- Chinese and English can be switched

- custom, boost and standard mode

- excellent technology, durable

- the highest test voltage can reach 8kV.

- intelligent detection of air discharge failure

- RJ45 and RS232 interface, remote (optional)

-EC60749-27-2012

-ANS1-ESDA-JEDEC JS-001-2017
