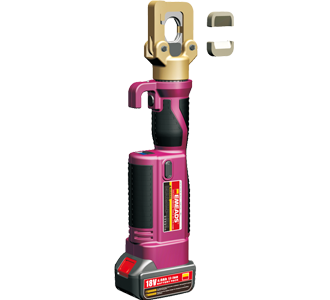

EMEADS GES-240 Charging Type Hydraulic Crimping Tools (60KN, 16mm)

TECHNICAL

Crimping force: 60KN

Stroke: 16mm

Crimping times:

170times(Cu150mm2)

(Per saturation voltage)

Crimping cycle: 3-6s Depend on the size of cable

Cut function:

Shearing steel core conductor 20mm

Copper aluminum conductor240 2

Voltage/capacity: 18V/4.0Ah

Net weight: 3.1kg

Charging time: 2 hours

Package: Plastic box

ACCESSORIES

Crimping dies: 10,16,25,35,50,70,95,120,150,185,240mm2

Battery: 2pcs

Charger: 1 p
