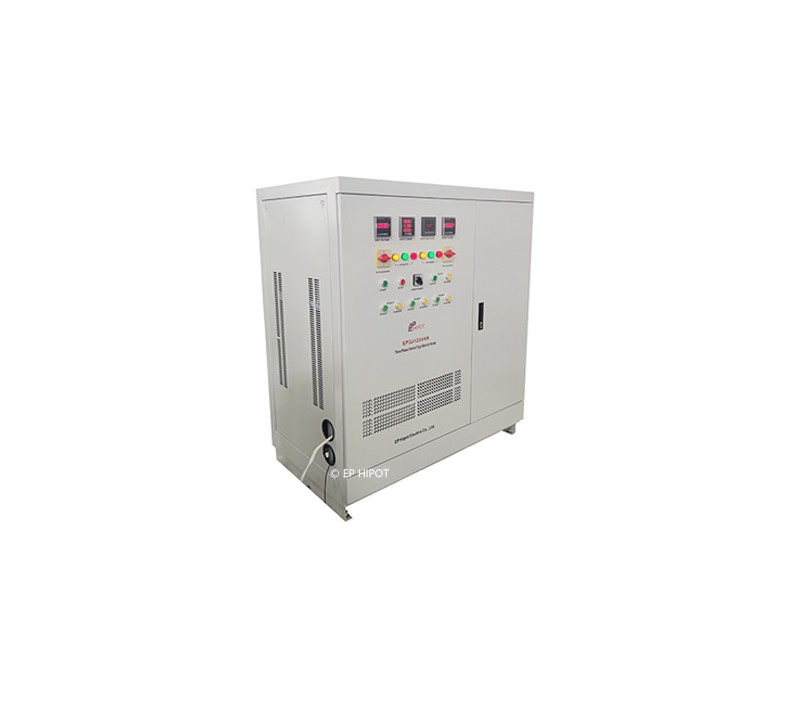

EPHIPOT EP3J-120kVA Three phase contact type electric variac (Three phase AC 415V)

Working Conditions:

-The altitude does not exceed 1000m.

- Indoor use.

- Maximum ambient temperature +45℃

Maximum daily average temperature +30℃

Maximum annual average temperature +20℃

Minimum temperature -15℃

-There should be no gas, steam, dust, dirt, chemical deposits and other explosive and aggressive media that seriously affect the insulation of the voltage regulator.

-There should be no serious vibration and bumps in the installation site.

-The waveform of the power supply voltage is similar to a sine wave.

-The three-phase power supply voltage is approximately symmetrical.

-Electric control.

Technical Specifications:

- Input line voltage: Three phase AC 415V

- Input current: 166 A

- Output line voltage: Three phase AC 0-650V

- Output current: 106A

- Frequency: 50-60Hz

- Dimension: 700(L)*800(W)*1800(H) mm

- Weight: About 420kg

General Information:

Contact type electric voltage regulator(variac) is by changing the position of the contact position of the brush and the polished surface of the ring-shaped winding to change the turns ratio of the primary and secondary windings, the regulator that finally achieves the main purpose is called a ring regulator. Ring contact type electric voltage regulator is a large contact type electric voltage regulator, which is a replacement product of inductive voltage regulator. Appearance, weight, volume, efficiency, waveform, operation, installation and maintenance are better than the same power induction voltage regulator. Suitable for industrial and mining power, hospitals, national defense, scientific research and other departments as a continuously adjustable test power supply
